pIG-832_NY-ESO-1_TCR_FAS/4-1BB
(Plasmid #207495)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 207495 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 207495-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 207495-D100 100 μg of DNA in Tris buffer $585
Add to Cart

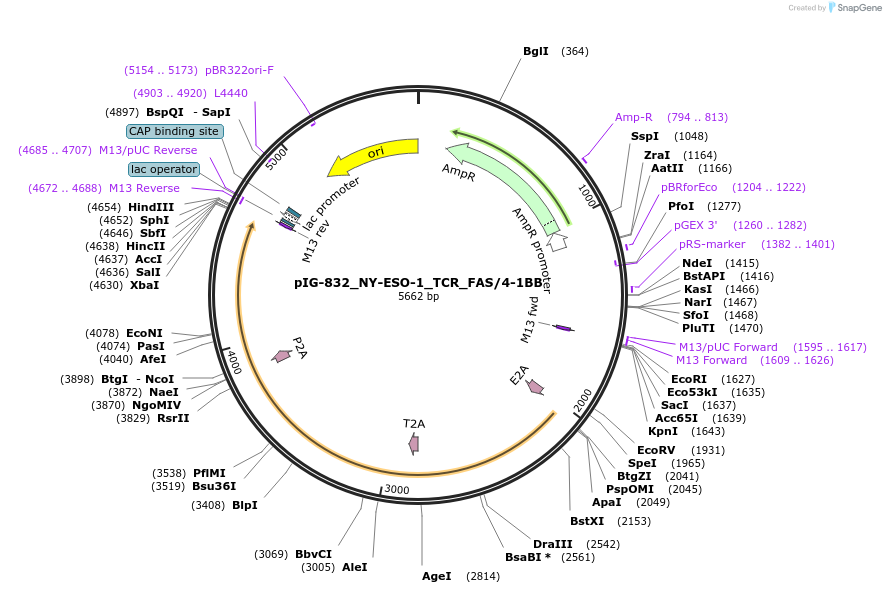

Backbone

  • Vector backbone
    PUC19
  • Vector type
    CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    FAS/4-1BB, NY-ESO-1_TCR
  • Species
    H. sapiens (human)
  • Entrez Gene
    FAS (a.k.a. ALPS1A, APO-1, APT1, CD95, FAS1, FASTM, TNFRSF6)

Cloning Information

  • Cloning method Gibson Cloning

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    NY-ESO-1 TCR sequence was provided by Antoni Ribas.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2022.07.27.501186 for bioRxiv preprint.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pIG-832_NY-ESO-1_TCR_FAS/4-1BB was a gift from Alexander Marson (Addgene plasmid # 207495 ; http://n2t.net/addgene:207495 ; RRID:Addgene_207495)

  • For your References section:

    Modular pooled discovery of synthetic knockin sequences to program durable cell therapies. Blaeschke F, Chen YY, Apathy R, Daniel B, Chen AY, Chen PA, Sandor K, Zhang W, Li Z, Mowery CT, Yamamoto TN, Nyberg WA, To A, Yu R, Bueno R, Kim MC, Schmidt R, Goodman DB, Feuchtinger T, Eyquem J, Jimmie Ye C, Carnevale J, Satpathy AT, Shifrut E, Roth TL, Marson A. Cell. 2023 Sep 14;186(19):4216-4234.e33. doi: 10.1016/j.cell.2023.08.013. 10.1016/j.cell.2023.08.013 PubMed 37714135
