NFAT luciferase reporter
(Plasmid #10959)

• Depositing Lab: Toren Finkel
• Depositing Organization: National Heart, Lung, and Blood Institute (NHLBI)
  Located in the United States of America
• Publication: Ichida et al J Biol Chem. 2001 Feb 2. 276(5):3524-30.
• Citations: 23 Articles

Backbone

• Vector backbone: pGL2-Basic
• Vector type: Mammalian Expression, Luciferase

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: IL-2 promoter
• Alt name: IL-2
• Species: H. sapiens (human)
• Insert Size (bp): 90
• Entrez Gene: IL2 (a.k.a. IL-2, TCGF, lymphokine)
• Tag / Fusion Protein:
  • luciferase (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ sequencing primer: LucNRev

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Luciferase Limited Use Label License
• Industry Terms:
  • Not Available to Industry

Depositor Comments

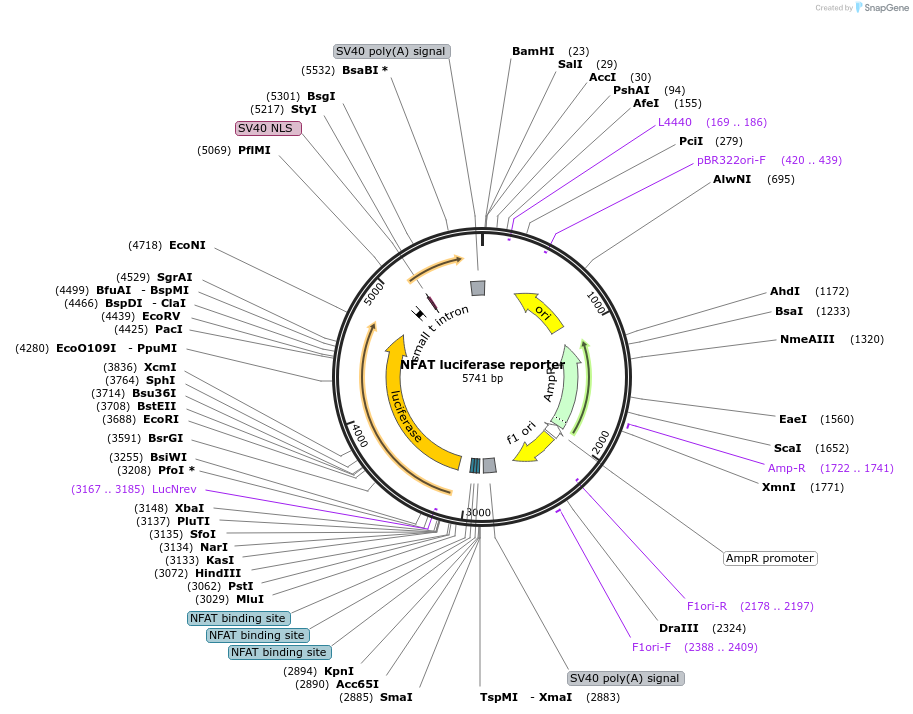

A luciferase reporter containing three tandem repeats of a 30-bp fragment of the IL-2 promoter for analysis of NFAT activity. 30-bp fragment is GGAGG AAAAA CTGTT TCATA CAGAA GGCGT.

DNA (Catalog # 10959-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Luciferase Limited Use Label License
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 10959-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Luciferase Limited Use Label License
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
