pcDNA3.1-HaloEKAR2.2-T2A-EGFP
(Plasmid
#216495)
-
PurposeExpression of chemigenetic ERK biosensor (low basal brightness, extremly high dynamic range) and EGFP transfection marker in mammalian cells
-
Depositing Lab
-
Depositing OrganizationUniversity of California, San Diego (UCSD)
Located in United States of America -

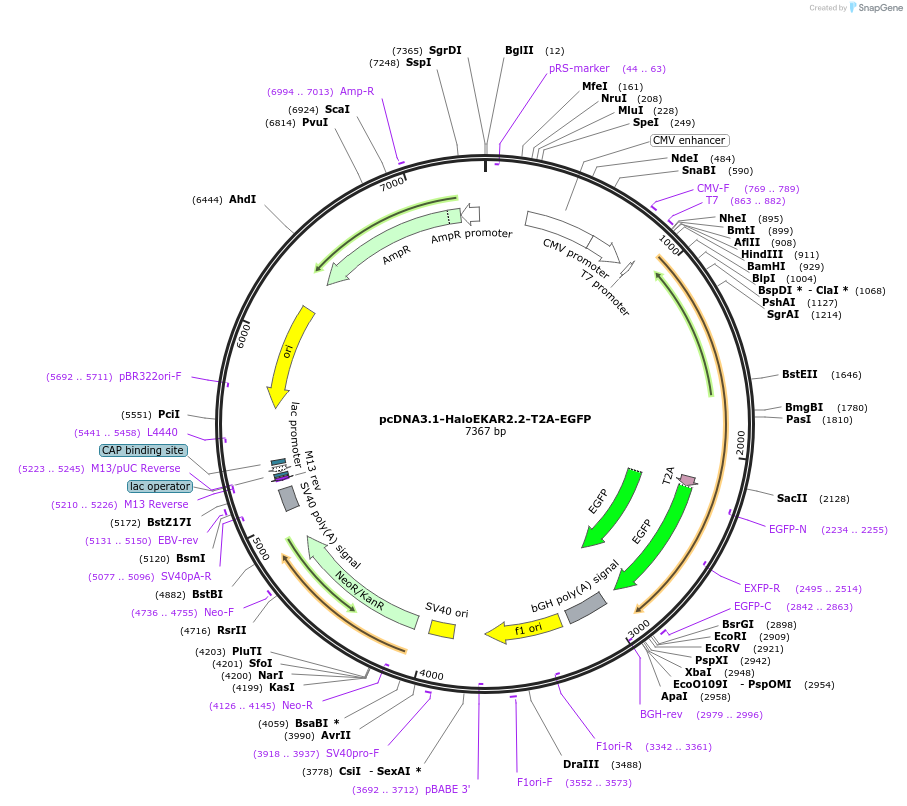

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 216495 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 216495-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 216495-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3.1
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameHaloEKAR2.2
-
SpeciesSynthetic
- Promoter CMV
-
Tag
/ Fusion Protein
- T2A-EGFP (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV forward
- 3′ sequencing primer BGH reverse
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 216495-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 216495-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.1-HaloEKAR2.2-T2A-EGFP was a gift from Jin Zhang (Addgene plasmid # 216495 ; http://n2t.net/addgene:216495 ; RRID:Addgene_216495) -
For your References section:
Far-red chemigenetic kinase biosensors enable multiplexed and super-resolved imaging of signaling networks. Frei MS, Sanchez SA, He X, Liu L, Schneider F, Wang Z, Hakozaki H, Li Y, Lyons AC, Rohm TV, Olefsky JM, Shi L, Schoneberg J, Fraser SE, Mehta S, Wang Y, Zhang J. Nat Biotechnol. 2025 Apr 21. doi: 10.1038/s41587-025-02642-8. 10.1038/s41587-025-02642-8 PubMed 40258957
