pUC18-GFP
(Plasmid
#220495)
-
PurposeTo generate substrates to monitor Ku overloading and its impact on transcription at the DNA ends vicinity.
-
Depositing Lab
-
Depositing OrganizationCNRS UMR 5089, Institute of Pharmacology and Structural Biology (IPBS)
Located in France -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 220495 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 * | |
| DNA | 220495-D50 | 50 μg of DNA in Tris buffer | $495 * | ||
| DNA | 220495-D100 | 100 μg of DNA in Tris buffer | $585 * | ||
* Log in to view industry pricing.
Backbone
-
Vector backbonepUC18
- Backbone size w/o insert (bp) 2686
- Total vector size (bp) 3921
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameEGFP
-
SpeciesSynthetic; Aequorea victoria
- Promoter SV40
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site BamHI (not destroyed)
- 5′ sequencing primer SV40-F
- 3′ sequencing primer BGH-R
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 220495-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 220495-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUC18-GFP was a gift from Sébastien Britton (Addgene plasmid # 220495 ; http://n2t.net/addgene:220495 ; RRID:Addgene_220495) -
For your References section:
Identification of the main barriers to Ku accumulation in chromatin. Bossaert M, Moreno A, Peixoto A, Pillaire MJ, Chanut P, Frit P, Calsou P, Loparo JJ, Britton S. bioRxiv [Preprint]. 2024 Jan 4:2024.01.03.574002. doi: 10.1101/2024.01.03.574002. 10.1101/2024.01.03.574002 PubMed 38260538

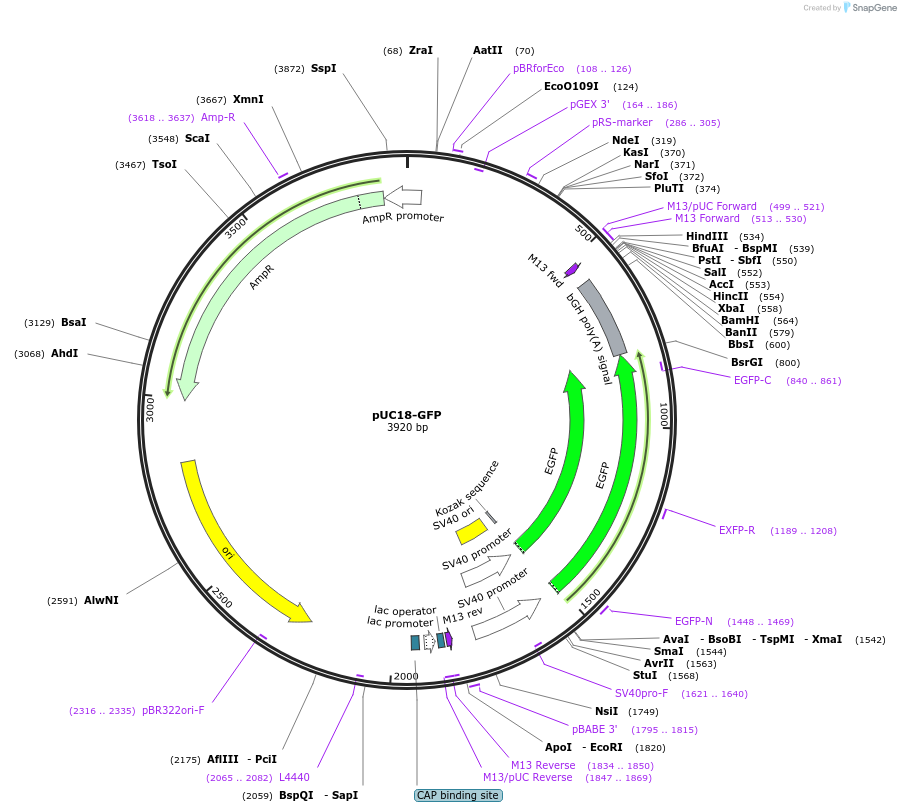

Map uploaded by the depositor.
