pTBL2142 MTK3-sfGFP
(Plasmid
#226661)
-
PurposeMTK3 part containing the coding sequence of sfGFP
-
Depositing Lab
-
Depositing OrganizationUniversity of California, Irvine
Located in United States of America -

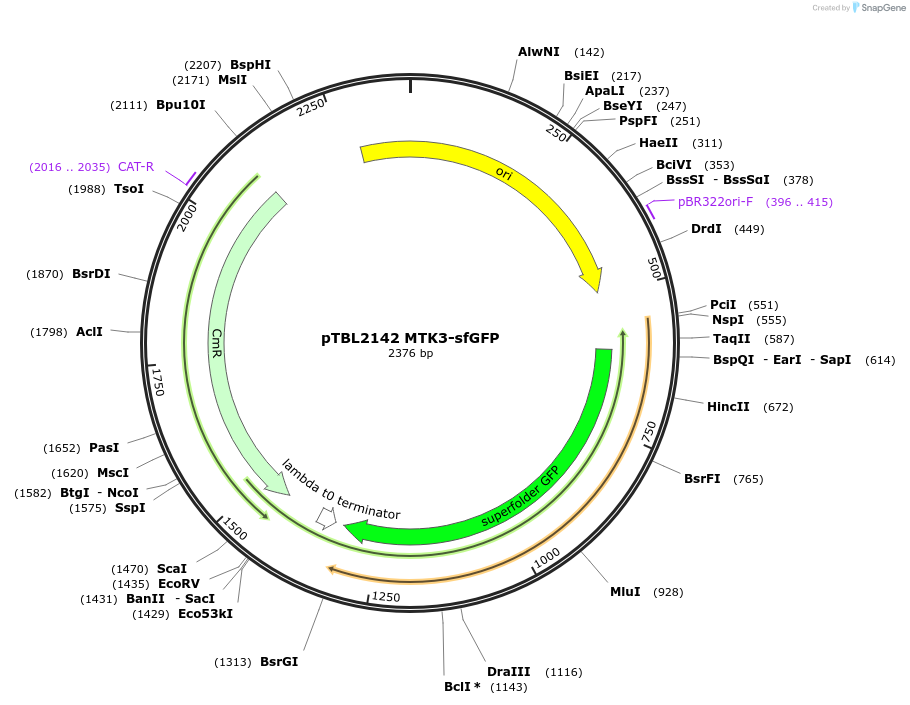

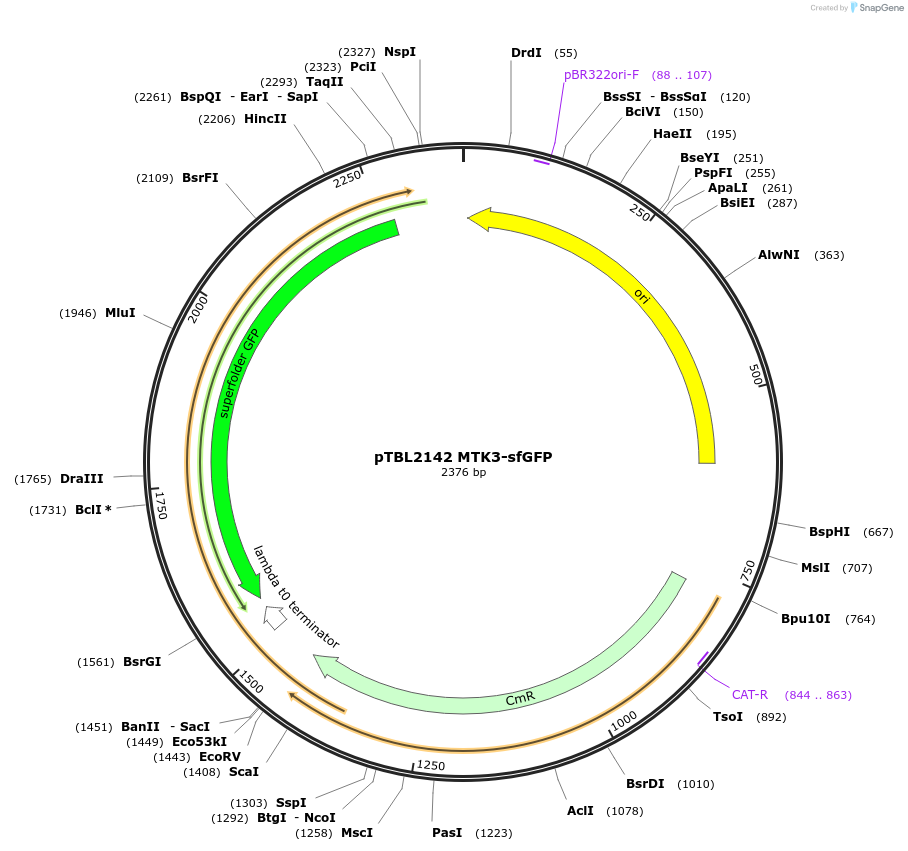

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 226661 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 226661-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 226661-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backboneMTK3
-
Backbone manufacturerHana El-Samad Lab
- Backbone size w/o insert (bp) 1656
- Total vector size (bp) 2376
-
Vector typeMammalian Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namesfGFP
-
SpeciesSynthetic
-
Insert Size (bp)720
- Promoter none
Cloning Information
- Cloning method Golden Gate
- 5′ sequencing primer ColE1
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byJohn Dueber's lab (sfGFP was obtained from the MoClo Yeast Toolkit, Kit #1000000061), and Hana El-Samad (Mammalian Toolkit, Kit #1000000180).
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2021.11.05.467507 for bioRxiv preprint.
DNA (Catalog # 226661-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 226661-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pTBL2142 MTK3-sfGFP was a gift from Chang Liu (Addgene plasmid # 226661 ; http://n2t.net/addgene:226661 ; RRID:Addgene_226661) -
For your References section:
Open-ended molecular recording of sequential cellular events into DNA. Loveless TB, Carlson CK, Dentzel Helmy CA, Hu VJ, Ross SK, Demelo MC, Murtaza A, Liang G, Ficht M, Singhai A, Pajoh-Casco MJ, Liu CC. Nat Chem Biol. 2025 Apr;21(4):512-521. doi: 10.1038/s41589-024-01764-5. Epub 2024 Nov 14. 10.1038/s41589-024-01764-5 PubMed 39543397
