pcDNA-pDEST_TMEM192_BirA_Flag
(Plasmid
#227958)
-
PurposeBioID experiment
-
Depositing Lab
-
Depositing OrganizationLeibniz Institute on Aging - Fritz Lipmann Institute (FLI)
Located in Germany -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 227958 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 227958-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 227958-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA5-pDEST-BirA-Flag-C-term
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameTMEM192
-
SpeciesH. sapiens (human)
-
MutationR118G in BirA
-
Entrez GeneTMEM192
-
Tag
/ Fusion Protein
- BirA-FLAG (C terminal on backbone)
Cloning Information
- Cloning method TOPO Cloning
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 227958-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 227958-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA-pDEST_TMEM192_BirA_Flag was a gift from Alessandro Ori (Addgene plasmid # 227958 ; http://n2t.net/addgene:227958 ; RRID:Addgene_227958) -
For your References section:
Cell-type resolved protein atlas of brain lysosomes identifies SLC45A1-associated disease as a lysosomal disorder. Ghoochani A, Heiby JC, Rawat ES, Medoh UN, Di Fraia D, Dong W, Gastou M, Rastogi M, Hernandez V, Nyame K, Laqtom NN, Durso W, Valkova C, Isakova A, Kaether C, Wernig M, Gomez-Ospina N, Franke C, Ori A, Abu-Remaileh M. Cell. 2026 Feb 5;189(3):765-782.e31. doi: 10.1016/j.cell.2025.12.012. Epub 2026 Jan 22. 10.1016/j.cell.2025.12.012 PubMed 41576950

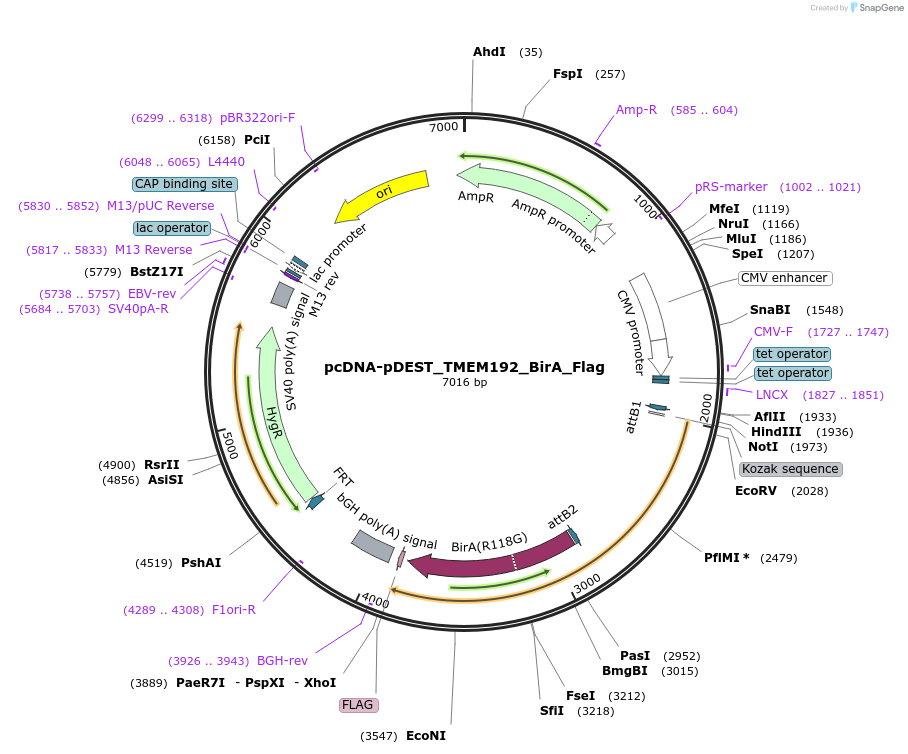

Map uploaded by the depositor.
