pCS2+ E4F1 degron(220-242)-GFP-IRES-mCherry
(Plasmid
#231007)
-
PurposeProtein stability reporter construct for E4F1 consisting of aa 220-242 for transient overexpression in mammalian cells.
-
Depositing Lab
-
Depositing OrganizationUniversity of California, Berkeley
Located in the United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 231007 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 231007-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 231007-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCS2+
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameE4F1 aa220-242
-
SpeciesH. sapiens (human)
-
Insert Size (bp)69
-
Entrez GeneE4F1 (a.k.a. E4F)
-
Tag
/ Fusion Protein
- AcGFP1 (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer SP6 fwd
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 231007-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 231007-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCS2+ E4F1 degron(220-242)-GFP-IRES-mCherry was a gift from Michael Rape (Addgene plasmid # 231007 ; http://n2t.net/addgene:231007 ; RRID:Addgene_231007) -
For your References section:
Structural basis and regulation of the reductive stress response. Manford AG, Mena EL, Shih KY, Gee CL, McMinimy R, Martinez-Gonzalez B, Sherriff R, Lew B, Zoltek M, Rodriguez-Perez F, Woldesenbet M, Kuriyan J, Rape M. Cell. 2021 Oct 14;184(21):5375-5390.e16. doi: 10.1016/j.cell.2021.09.002. Epub 2021 Sep 24. 10.1016/j.cell.2021.09.002 PubMed 34562363

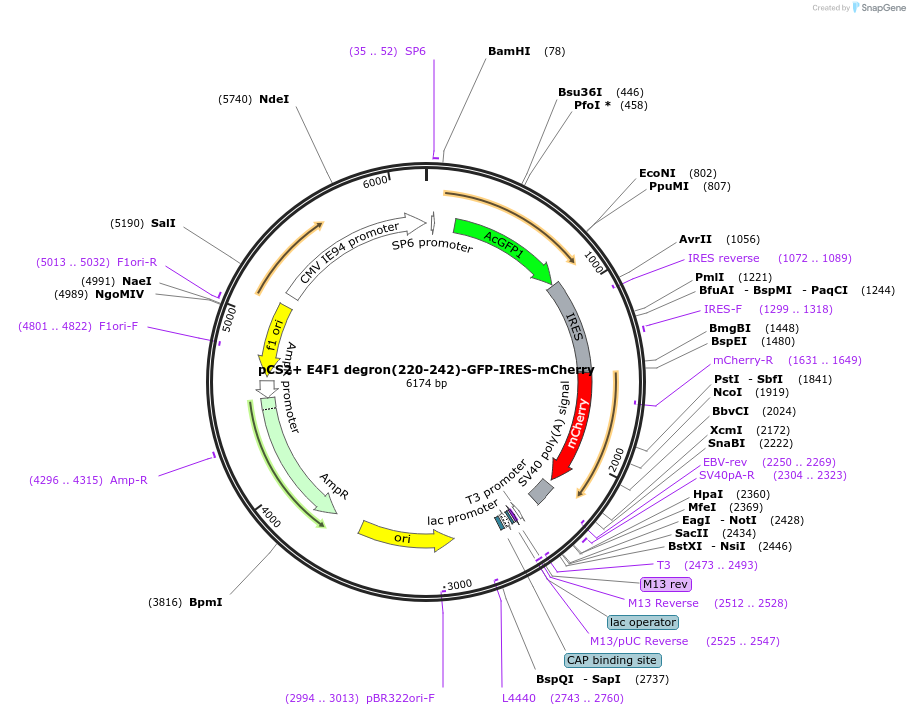

Map uploaded by the depositor.
