KL063 - pCAGGS-OsTIR1(F74G)-BpA-Frt-PGK-EM7-NeoR-bpA-Frt-Rosa26
(Plasmid
#232929)
-
PurposeTargeting vector to introduce an OsTir1(F74G) expressing cassette at the mouse Rosa26 locus using Neomycin selection. AID2 degron system. Use with Addgene #64216 sgRNA.
-
Depositing Lab
-
Depositing OrganizationNew York University
Located in the United States of America -
Publication
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 232929 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 232929-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 232929-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEN113
-
Backbone manufacturerBenoit Bruneau (Addgene #86233)
-
Vector typeMammalian Expression, Mouse Targeting
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameOsTir1(F74G)
-
SpeciesOryza sativa
-
Mutationchanged Phenylalanine 74 to Glycine
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site MluI (not destroyed)
- 3′ cloning site XmaI (not destroyed)
- 5′ sequencing primer tcacgcgtctgcaggatatcatgacatactttcctgaag
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byMasato Kanemaki (Addgene #140730)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 232929-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 232929-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
KL063 - pCAGGS-OsTIR1(F74G)-BpA-Frt-PGK-EM7-NeoR-bpA-Frt-Rosa26 was a gift from Danny Reinberg (Addgene plasmid # 232929 ; http://n2t.net/addgene:232929 ; RRID:Addgene_232929) -
For your References section:
CTCF-RNA interactions orchestrate cell-specific chromatin loop organization. Lucero K, Han S, Huang P, Qiu X, Mazzoni EO, Reinberg D. bioRxiv, March 19, 2025 10.1101/2025.03.19.643339

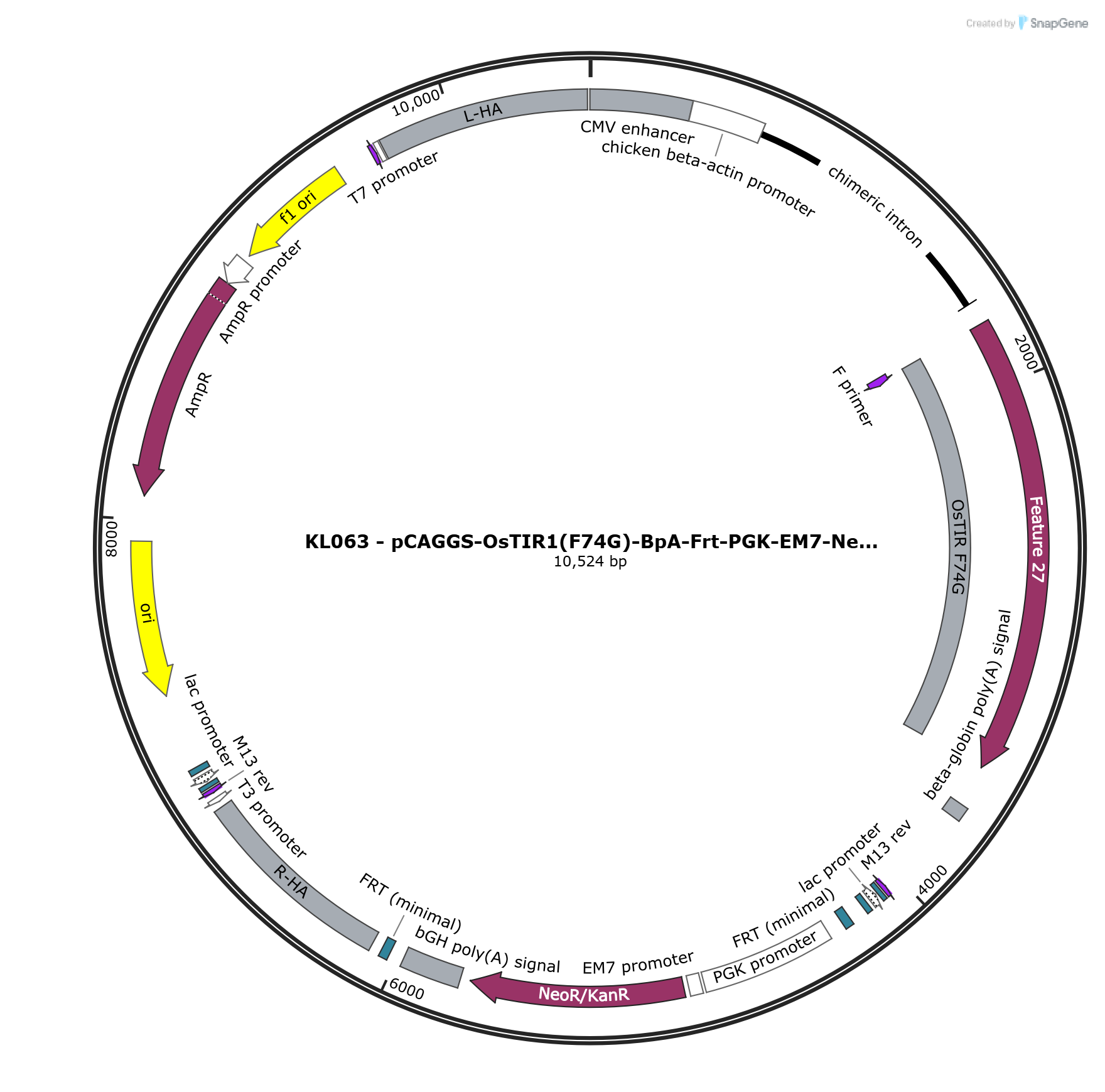

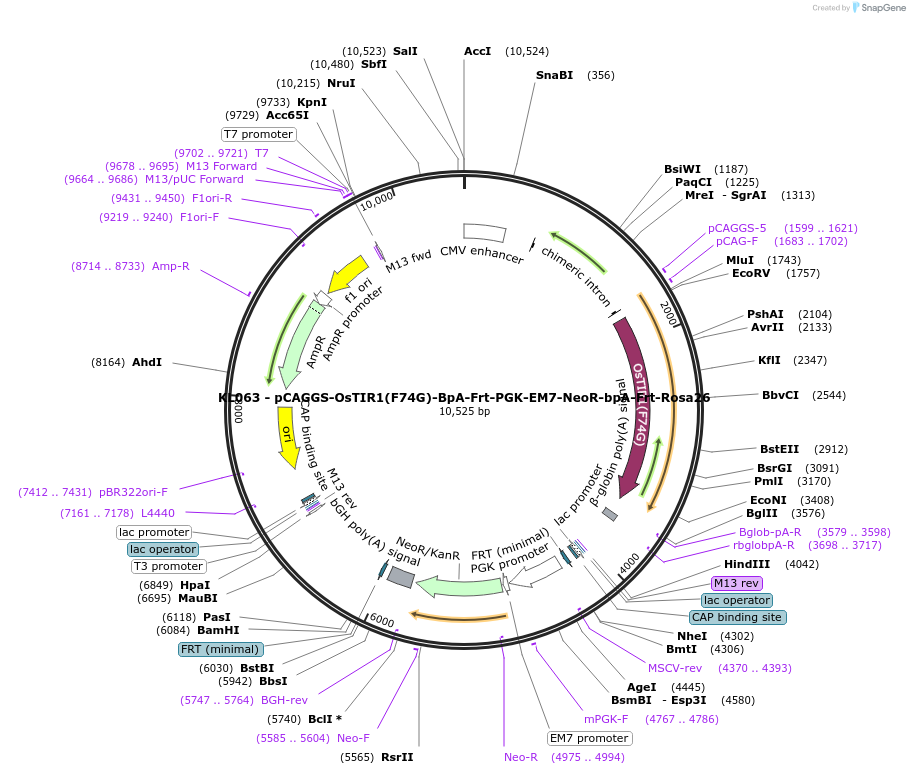

Map uploaded by the depositor.
