Cyclin B1-Venus ND
(Plasmid #234673)

• Purpose: expresses a non-degradable cyclin B1 in fusion with Venus
• Depositing Lab: Lienhard Schmitz
• Depositing Organization: Justus Liebig-Universitaet Giessen
  Located in Germany
• Publication: Seibert et al J Cell Biol. 2019 Apr 1;218(4):1164-1181. doi: 10.1083/jcb.201806057. Epub 2019 Feb 14.

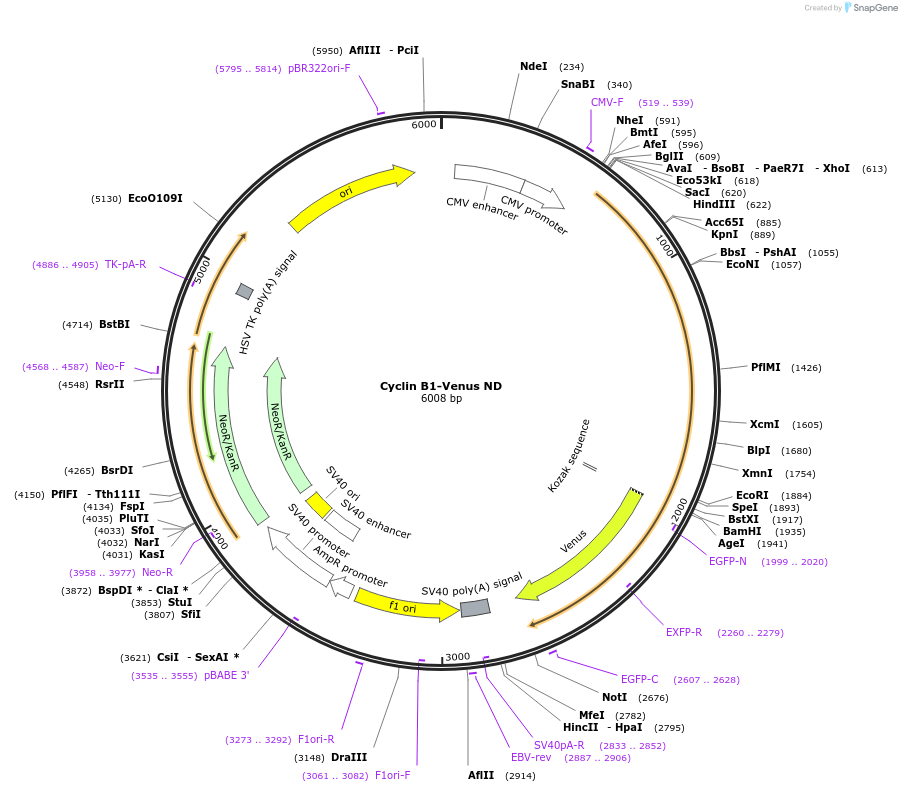

Backbone

• Vector backbone: pVenus-N1
• Backbone size w/o insert (bp): 4688
• Total vector size (bp): 6008
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert 1

• Gene/Insert name: Cyclin B1
• Species: H. sapiens (human)
• Insert Size (bp): 1941
• GenBank ID: BC006510.2
• Entrez Gene: CCNB1 (a.k.a. CCNB)
• Promoter: CMV
• Tag / Fusion Protein:
  • Venus (C terminal on insert)

Cloning Information for Gene/Insert 1

• Cloning method: Restriction Enzyme
• 5′ cloning site: HindIII (unknown if destroyed)
• 3′ cloning site: BamHI (unknown if destroyed)
• 5′ sequencing primer: CMV promoter
• 3′ sequencing primer: SV40 poly A reverse

Gene/Insert 2

• Gene/Insert name: Cyclin B1
• Species: H. sapiens (human)
• Mutation: double mutation R42A and L45A
• GenBank ID: BC006510.2
• Entrez Gene: CCNB1 (a.k.a. CCNB)
• Tag / Fusion Protein:
  • Venus (C terminal on insert)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

the cyclin B1 was rendered stably upon R42A/L45A point mutations

DNA (Catalog # 234673-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 234673-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
