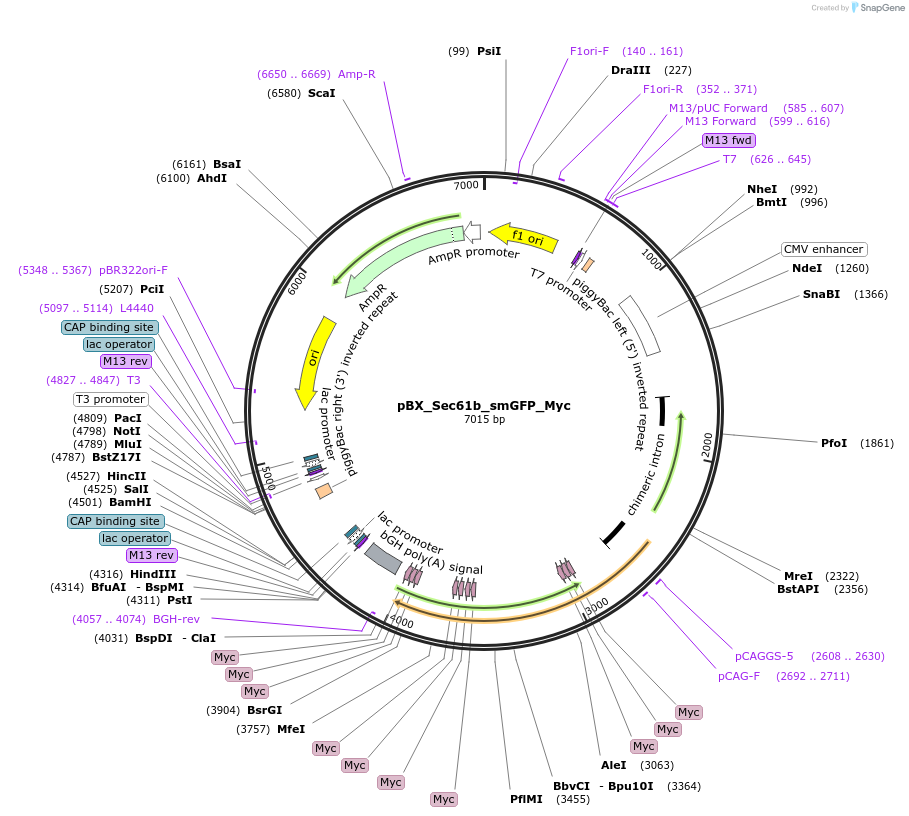

pBX_Sec61b_smGFP_Myc
(Plasmid
#236092)
-
PurposeConstitutively encodes Sec61b-smGFP-Myc (sfGFP-based spaghetti monster fluorescent protein embedding Myc epitope tags), for targeting the endoplasmic reticulum.
-
Depositing Lab
-
Depositing OrganizationStanford University
Located in the United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 236092 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 236092-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 236092-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepBX
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSec61b-smGFP-Myc
-
SpeciesH. sapiens (human), Synthetic
-
Entrez GeneSEC61B
Cloning Information
- Cloning method Gibson Cloning
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 236092-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 236092-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBX_Sec61b_smGFP_Myc was a gift from Maria Barna (Addgene plasmid # 236092 ; http://n2t.net/addgene:236092 ; RRID:Addgene_236092) -
For your References section:
A subcellular map of translational machinery composition and regulation at the single-molecule level. Zhang Z, Xu A, Bai Y, Chen Y, Cates K, Kerr C, Bermudez A, Susanto TT, Wysong K, Garcia Marques FJ, Nolan GP, Pitteri S, Barna M. Science. 2025 Mar 7;387(6738):eadn2623. doi: 10.1126/science.adn2623. Epub 2025 Mar 7. 10.1126/science.adn2623 PubMed 40048539
