Mito-PAmKate
(Plasmid
#238078)
-
PurposeExpresses photoactivable fluorescent reporter for visualizing mitochondrial network
-
Depositing Lab
-
Depositing OrganizationIndian Institute of Science, Bangalore
Located in India -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 238078 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 238078-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 238078-D100 | 100 μg of DNA in Tris buffer | $585 | ||

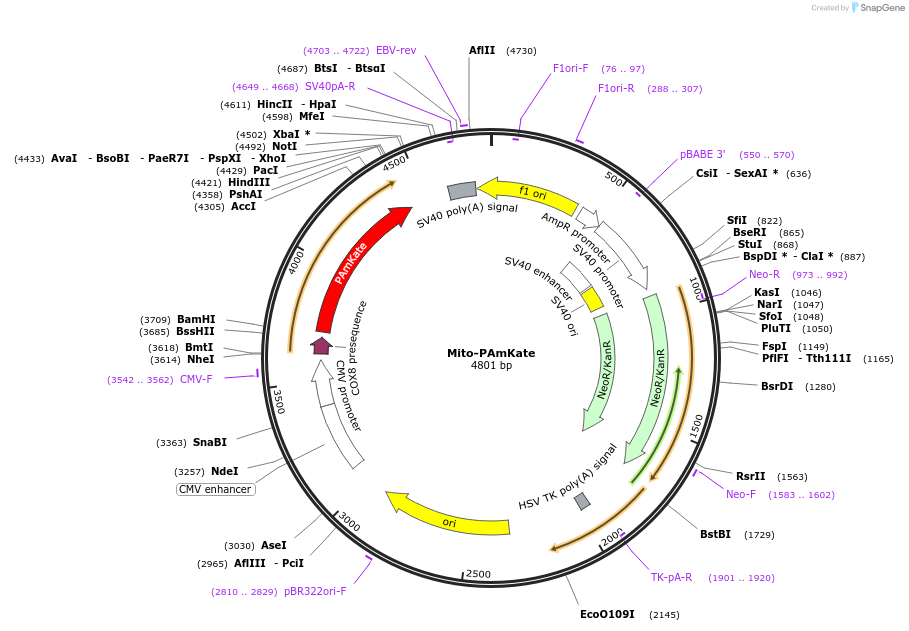

Backbone
-
Vector backbonePS-CFP2-Mito-7
-
Modifications to backboneRemoved PS-CFP2 and inserted PAmKate.
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePAmKate
-
Insert Size (bp)715
- Promoter CMV
-
Tag
/ Fusion Protein
- Mito (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer CMV Forward
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 238078-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 238078-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Mito-PAmKate was a gift from Partha Mondal (Addgene plasmid # 238078 ; http://n2t.net/addgene:238078 ; RRID:Addgene_238078) -
For your References section:
Super-resolution optical microscopy reveals accumulation of photoactivable dengue protein (Dendra2-NS2B) in the endoplasmic reticulum. Aravinth S, Varghese JM, Pant N, Mondal PP. Sci Rep. 2025 Mar 26;15(1):10358. doi: 10.1038/s41598-025-94135-6. 10.1038/s41598-025-94135-6 PubMed 40133359
