pVeBtA2
(Plasmid
#238987)
-
PurposeMammalian expression of bovine arrestin-2 long isoform with Venus N-terminal fusion
-
Depositing Lab
-
Depositing OrganizationVanderbilt University
Located in United States of America -

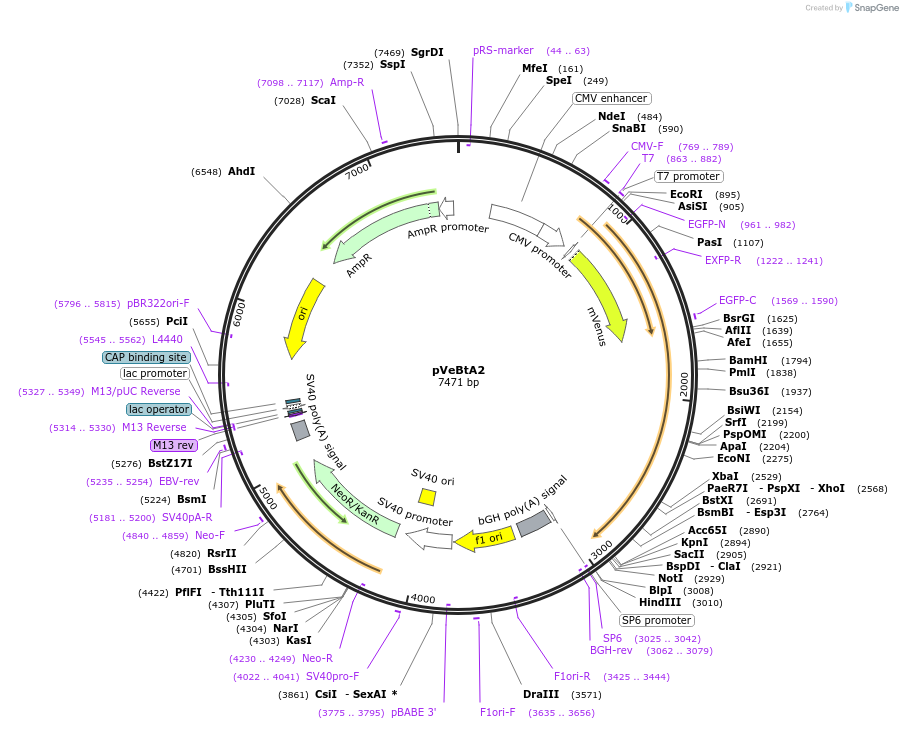

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 238987 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 238987-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 238987-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3
-
Backbone manufacturerThermoFisher
- Backbone size w/o insert (bp) 5400
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namearrestin-2 long
-
SpeciesB. taurus (bovine)
-
Insert Size (bp)2000
-
Mutationnone
-
Entrez GeneARRB2
- Promoter CMV
-
Tag
/ Fusion Protein
- Venus (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Eco RI (unknown if destroyed)
- 3′ cloning site Hind III (unknown if destroyed)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 238987-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 238987-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pVeBtA2 was a gift from Vsevolod Gurevich (Addgene plasmid # 238987 ; http://n2t.net/addgene:238987 ; RRID:Addgene_238987) -
For your References section:
Role of receptor-attached phosphates in binding of visual and non-visual arrestins to G protein-coupled receptors. Gimenez LE, Kook S, Vishnivetskiy SA, Ahmed MR, Gurevich EV, Gurevich VV. J Biol Chem. 2012 Mar 16;287(12):9028-40. doi: 10.1074/jbc.M111.311803. Epub 2012 Jan 24. 10.1074/jbc.M111.311803 PubMed 22275358
