pFB-CMV-DIO-MTS-roGFP-WPRE
(Plasmid #245375)

• Purpose: Cre-dependent expression of a green fluorescent protein biosensor to determine mitochondrial cellular reduction-oxidation (redox) states.
• Depositing Lab: D. James Surmeier
• Publication: Tubert et al Neurobiol Dis. 2023 Nov;188:106328. doi: 10.1016/j.nbd.2023.106328. Epub 2023 Oct 16.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $34 USD for plasmid.
• How this works:
  • Place a request for a quantity of 2 (0.2 mL), 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

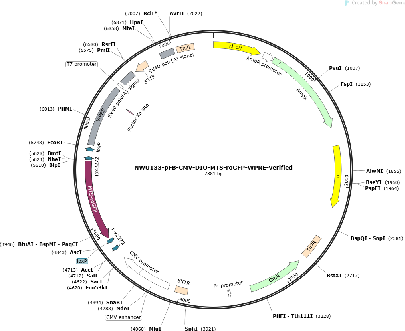

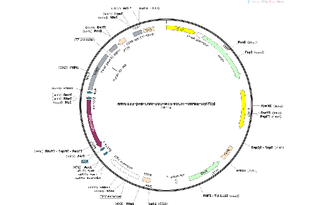

Backbone

• Vector backbone: pFB
• Backbone manufacturer: Virovek
• Backbone size w/o insert (bp): 4838
• Total vector size (bp): 7381
• Vector type: Mammalian Expression, AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: roGFP
• Species: Synthetic
• Insert Size (bp): 2543
• Promoter: CMV
• Tag / Fusion Protein:
  • mitochondrial-targeting sequence of the S. pombe cytochrome c oxidase subunit IV (cox4) (N terminal on insert)

Cloning Information

• Cloning method: Unknown
• 5′ sequencing primer: CGCAAATGGGCGGTAGGCGTG
• 3′ sequencing primer: GAAATTTGTGATGCTATTGC

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
