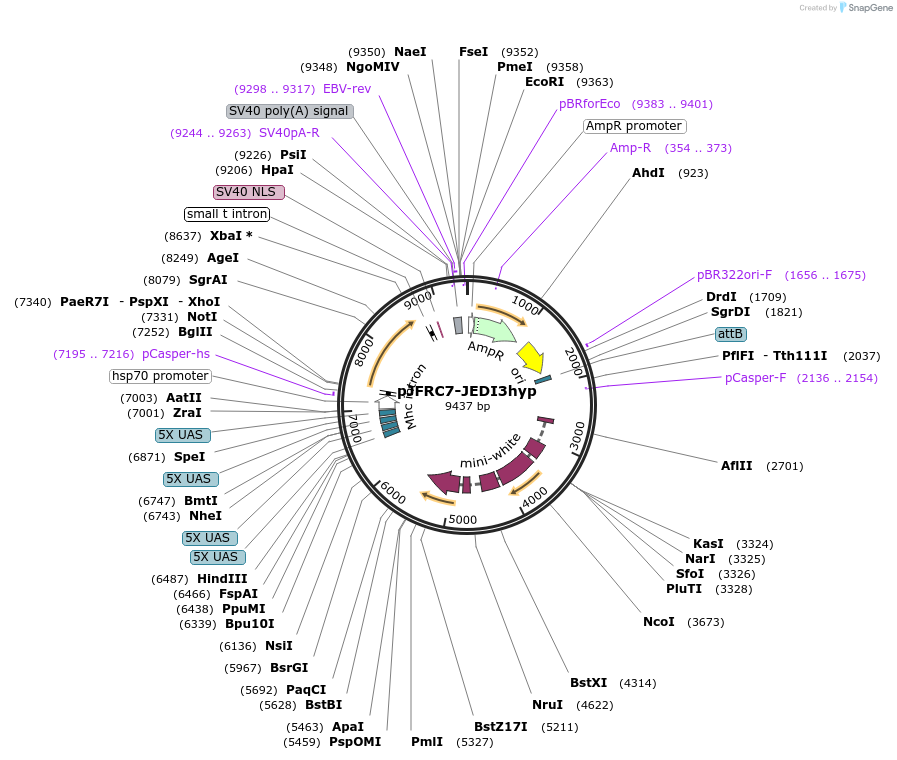

pJFRC7-JEDI3hyp
(Plasmid #246636)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 246636 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pJFRC7
  • Backbone size w/o insert (bp) 8157
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    JEDI3hyp
  • Species
    Synthetic
  • Insert Size (bp)
    1281
  • Promoter hsp70

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer GAGCGCCGGAGTATAAATAGAG
  • 3′ sequencing primer CCATTCATCAGTTCCATAGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid was not directly tested in the corresponding publication, but the plasmid does contain the GEVI characterized in the corresponding publication.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJFRC7-JEDI3hyp was a gift from Francois St-Pierre (Addgene plasmid # 246636 ; http://n2t.net/addgene:246636 ; RRID:Addgene_246636)

  • For your References section:

    Designer indicators for two-photon recording of subthreshold voltage dynamics. Land MA, Galdamez M, Villette V, Zhu J, Lu X, Marosi M, Yang S, Foran G, McDonald AJ, Dong X, Zaabout E, Liu H, Liu Z, Colbert KL, Lai S, Shorey M, Lourdiane ASG, Ayon A, Bradley J, Mailhes-Hamon C, Natan RG, Zhong J, Kroeger R, Law RG, Hakam N, Smith CL, Hu M, Tabb S, Bathellier B, Dudok B, Ji N, Bourdieu L, Reimer J, St-Pierre F. Nat Methods. 2026 Apr 15. doi: 10.1038/s41592-026-03043-8. 10.1038/s41592-026-03043-8 PubMed 41986688
