sCAG-DIO-oScarlet3
(Plasmid
#247721)
-
PurposeUsed for AAV1 tracing experiment.
-
Depositing Lab
-
Depositing OrganizationUniversity of Illinois at Urbana-Champaign
Located in United States of America -

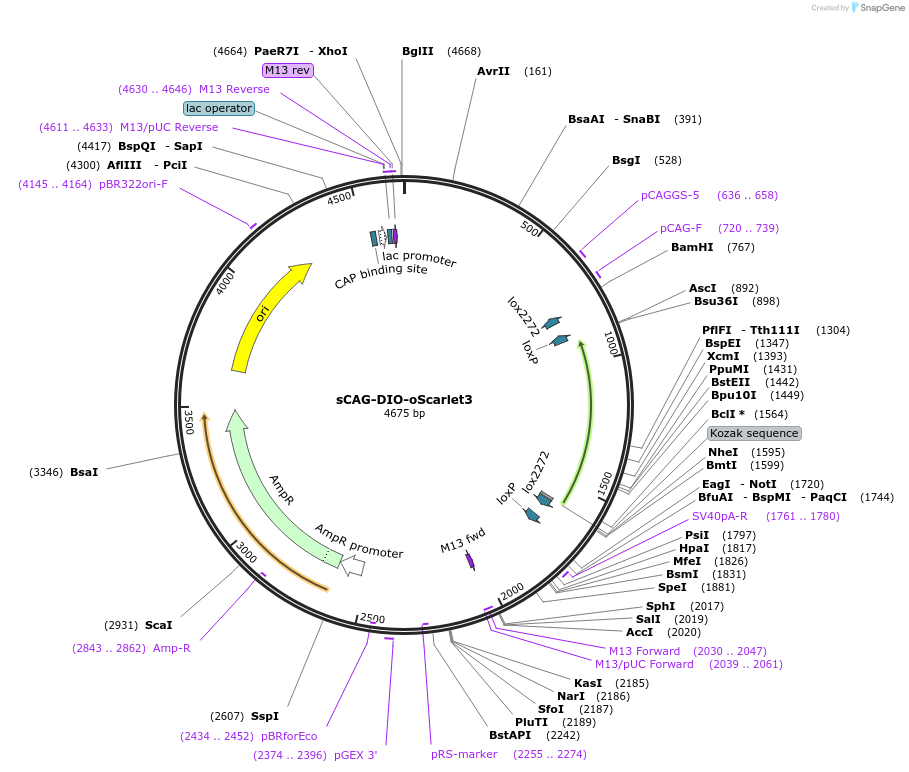

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 247721 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 247721-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 247721-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepAAV
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameoScarlet3
-
SpeciesM. musculus (mouse)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2025.02.13.638129 for bioRxiv preprint.
DNA (Catalog # 247721-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 247721-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
sCAG-DIO-oScarlet3 was a gift from Boxuan Zhao (Addgene plasmid # 247721 ; http://n2t.net/addgene:247721 ; RRID:Addgene_247721) -
For your References section:
Connectome-seq: high-throughput mapping of neuronal connectivity at single-synapse resolution via barcode sequencing. Chen D, Isakova A, Wan Z, Wagner MJ, Wu Y, Zhao BS. Nat Methods. 2026 Mar 12. doi: 10.1038/s41592-026-03026-9. 10.1038/s41592-026-03026-9 PubMed 41820665
