pENTR-EGFP-lysenin
(Plasmid
#251001)
-
PurposeGateway entry clone with EGFP-lysenin for visualization of sphingomyelin
-
Depositing Lab
-

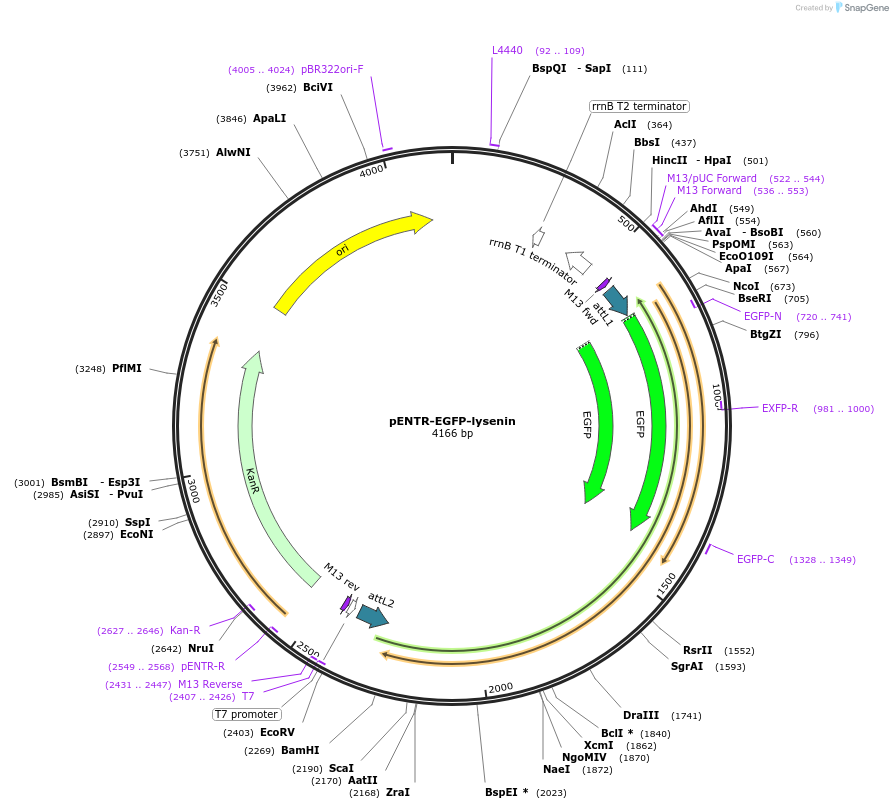

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 251001 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
Backbone
-
Vector backbonepDONR221
-
Backbone manufacturerThermo Fisher Scientific
- Backbone size w/o insert (bp) 2566
- Total vector size (bp) 4180
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namelysenin
-
SpeciesEisenia fetida
-
Insert Size (bp)888
-
MutationN-terminal methionine not included, W20A mutation
-
GenBank IDD85846
-
Tag
/ Fusion Protein
- EGFP (N terminal on insert)
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer M13F
- 3′ sequencing primer M13R
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byFelix Randow, MRC Laboratory of Molecular Biology, Cambridge, UK
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pENTR-EGFP-lysenin was a gift from Jörn Coers (Addgene plasmid # 251001 ; http://n2t.net/addgene:251001 ; RRID:Addgene_251001)
