pEN_TGmiR_Luc-A
(Plasmid
#25765)
-
PurposeEntry vector withTRE promoter driving control Luciferase miR30-based shRNA with GFP coexpression.
-
Depositing Lab
-
Depositing OrganizationCalifornia Institute of Technology
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 25765 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 25765-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 25765-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepENTR1A-Gent
-
Backbone manufacturerATCC 10326362
- Backbone size w/o insert (bp) 4990
-
Vector typeGateway Cloning
Growth in Bacteria
-
Bacterial Resistance(s)Gentamicin, 10 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Top10
-
Growth instructionsTop10
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameLuciferase miR-shRNA
-
Tag
/ Fusion Protein
- GFP (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site attL1 (not destroyed)
- 3′ cloning site attL2 (not destroyed)
- 5′ sequencing primer pCEP-fwd
- 3′ sequencing primer n/a
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byTRE promoter- David Anderson, Caltech; miR30- Greg Hannon, CSHL
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Entry vector with TRE-driven luciferase miR-shRNA and co-expressed GFP
Luciferase shRNA sequence is - 5'- CCCGCCTGAAGTCTCTGATTAATAGTGAAGCC ACAGATGTATTAATCAGAGACTTCAGGCGGT
DNA (Catalog # 25765-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 25765-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEN_TGmiR_Luc-A was a gift from Iain Fraser (Addgene plasmid # 25765 ; http://n2t.net/addgene:25765 ; RRID:Addgene_25765) -
For your References section:
A single lentiviral vector platform for microRNA-based conditional RNA interference and coordinated transgene expression. Shin KJ, Wall EA, Zavzavadjian JR, Santat LA, Liu J, Hwang JI, Rebres R, Roach T, Seaman W, Simon MI, Fraser ID. Proc Natl Acad Sci U S A. 2006 Sep 12. 103(37):13759-64. 10.1073/pnas.0606179103 PubMed 16945906

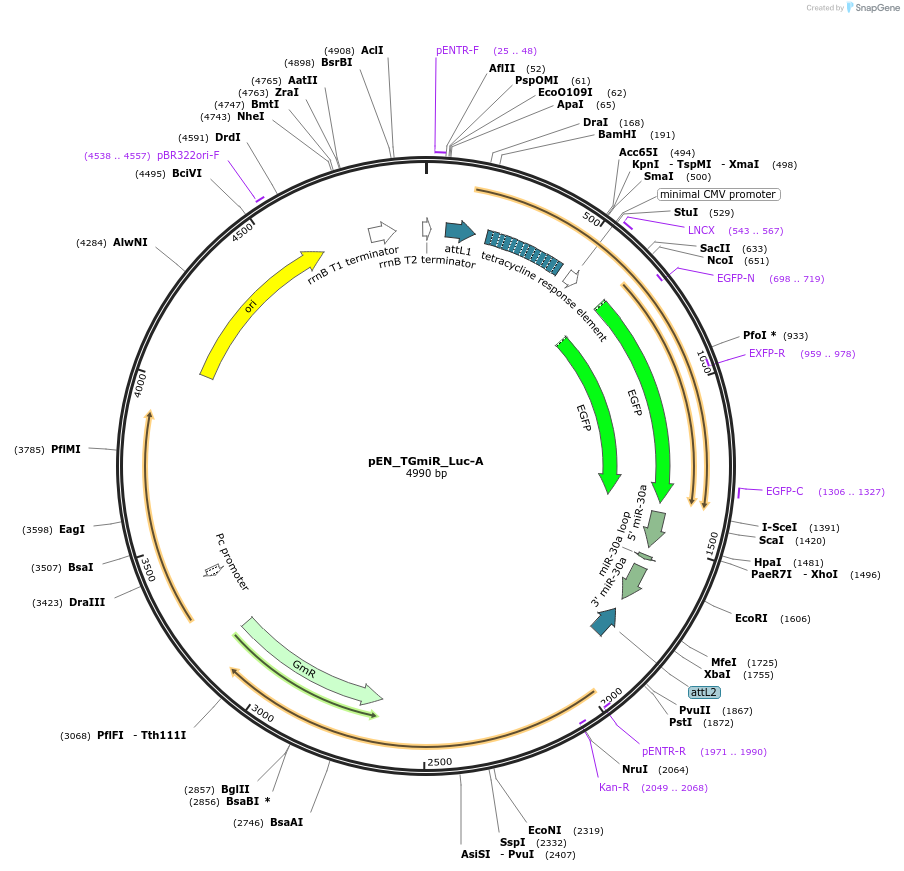

Map uploaded by the depositor.
