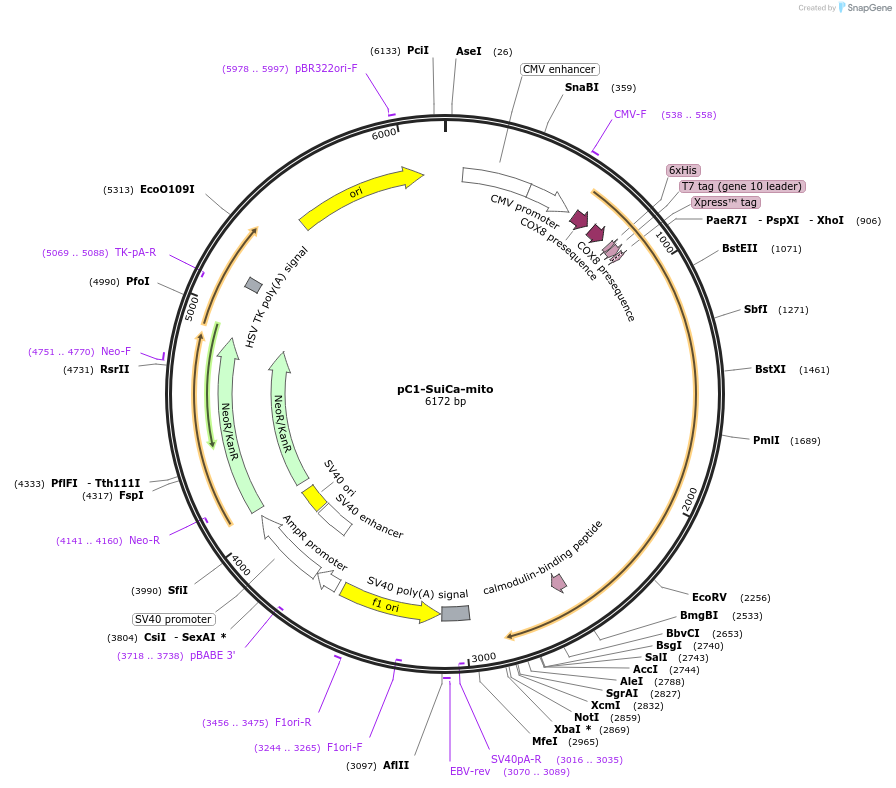

pC1-SuiCa-mito
(Plasmid #260163)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 260163 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart

Backbone

  • Vector backbone
    pC1
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SuiCa-mito
  • Species
    Synthetic
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pC1-SuiCa-mito was a gift from Robert Campbell (Addgene plasmid # 260163 ; http://n2t.net/addgene:260163 ; RRID:Addgene_260163)

  • For your References section:

    A Genetically Encoded Calcium Ion Biosensor with an Exceptionally Large Ratiometric Response. Nguyen AA, Musa M, Wang Y, Wait SJ, Li S, Lee JD, Torp L, Moghadasi A, Smith N, Terai T, Takahashi-Yamashiro K, Tsao KK, Berndt A, Campbell RE. ACS Sens. 2026 Jun 16. doi: 10.1021/acssensors.6c00112. 10.1021/acssensors.6c00112 PubMed 42302135
