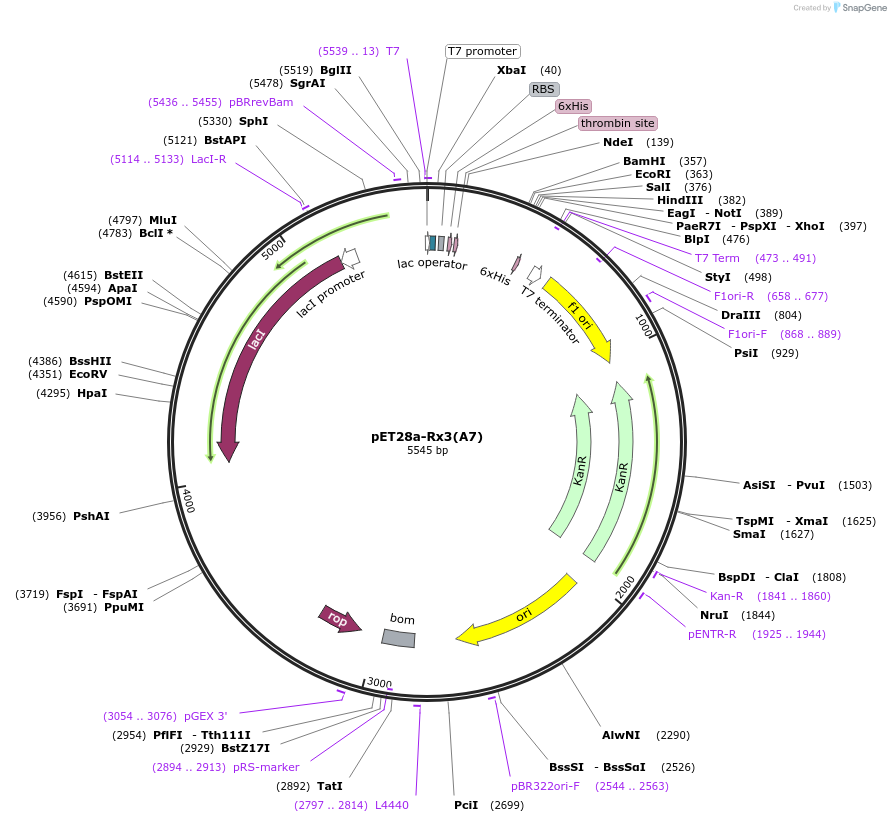

pET28a-Rx3(A7)
(Plasmid #35525)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 35525 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pET28a
  • Backbone manufacturer
    Novagen
  • Backbone size w/o insert (bp) 5369
  • Modifications to backbone
    changed G2 to P
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    His6-Rx3(A7)
  • Species
    Synthetic
  • Insert Size (bp)
    316
  • Mutation
    Changed G2 to P
  • Promoter T7
  • Tag / Fusion Protein
    • His6 (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site nde1 (not destroyed)
  • 3′ cloning site BamH1 (not destroyed)
  • 5′ sequencing primer T7 promoter
  • 3′ sequencing primer T7 terminator
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET28a-Rx3(A7) was a gift from Robert Cohen (Addgene plasmid # 35525 ; http://n2t.net/addgene:35525 ; RRID:Addgene_35525)
  • For your References section:

    Polyubiquitin-sensor proteins reveal localization and linkage-type dependence of cellular ubiquitin signaling. Sims JJ, Scavone F, Cooper EM, Kane LA, Youle RJ, Boeke JD, Cohen RE. Nat Methods. 2012 Feb 5. doi: 10.1038/nmeth.1888. 10.1038/nmeth.1888 PubMed 22306808
