pRc/CMV HA TrkA
(Plasmid #39977)

• Depositing Lab: Yves-Alain Barde
• Depositing Organization: University of Basel
  Located in Switzerland
• Publication: Bibel et al EMBO J. 1999 Feb 1;18(3):616-22.
• Citations: 1 Article

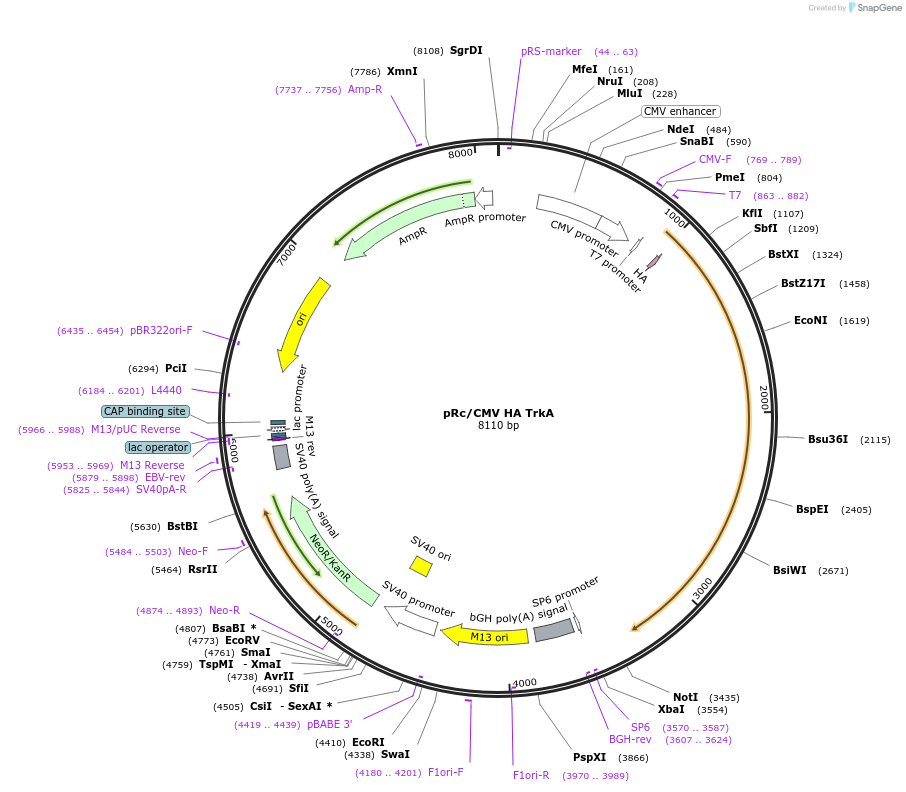

Backbone

• Vector backbone: pRC/CMV AC7 vector, a derivative of the pRC/CMV vector
• Backbone manufacturer: Invitrogen
• Backbone size w/o insert (bp): 5500
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: TrkA
• Alt name: trk
• Alt name: Ntrk1
• Species: R. norvegicus (rat)
• Insert Size (bp): 2500
• Mutation: endogenous signal sequence was replaced with BM40 and HA tag
• GenBank ID: NM_021589.1
• Entrez Gene: Ntrk1 (a.k.a. Trk)
• Promoter: CMV
• Tags / Fusion Proteins:
  • BM40 signal sequence (N terminal on insert)
  • HA (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: HindIII (pmeI added) (unknown if destroyed)
• 3′ cloning site: Not I (internal NotI site was silently mutated) (unknown if destroyed)
• 5′ sequencing primer: CMV-F
• 3′ sequencing primer: SP6

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

cloned in the pRC/CMV AC7 vector, a derivative of the pRC/CMV vector (Invitrogen), which contains the BM40 signal peptide

Please note that the endogenous signal sequence of TrkA was replaced by the BM40 signal peptide sequence (MRAWIFFLLCLAGRALAAPLA). When compared to GenBank ID NP_067600.1, the TrkA protein sequence starts at amino acid #30

DNA (Catalog # 39977-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 39977-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
