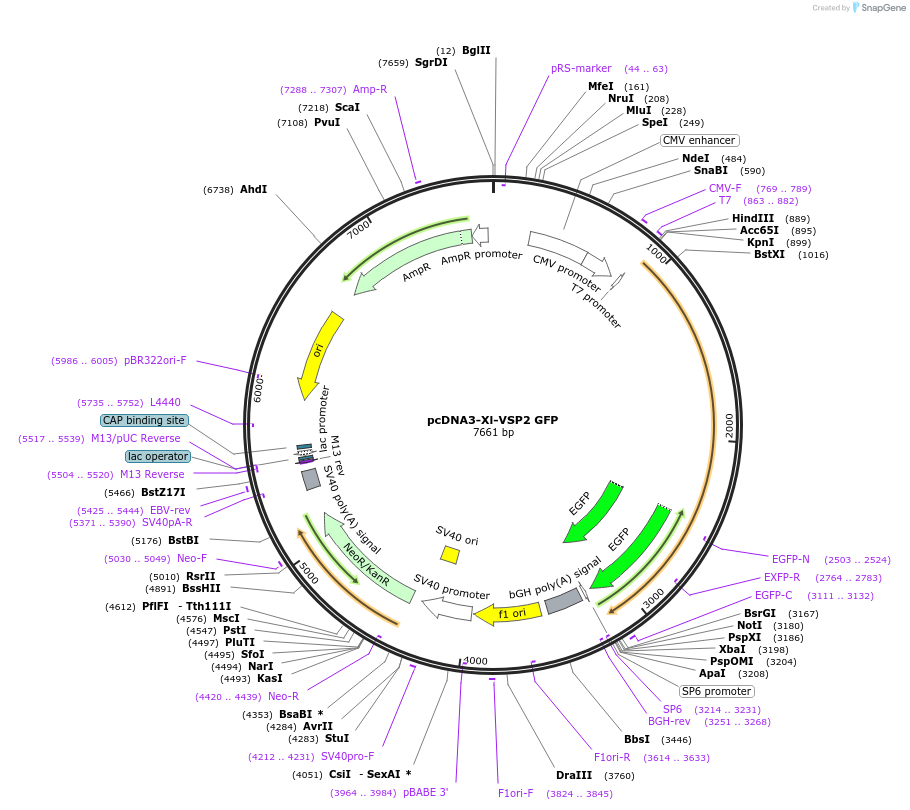

(Plasmid #51886)


Item Catalog # Description Quantity Price (USD)
Plasmid 51886 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Vector type
    Mammalian Expression ; Xenopus oocyte expression

Growth in Bacteria

  • Bacterial Resistance(s)
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
  • Alt name
    voltage-sensitive phosphatase 2
  • Species
    X. laevis (frog)
  • Promoter CMV
  • Tag / Fusion Protein
    • EGFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH Reverse
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-Xl-VSP2 GFP was a gift from Laurinda Jaffe (Addgene plasmid # 51886 ; ; RRID:Addgene_51886)
  • For your References section:

    Voltage sensitive phosphoinositide phosphatases of Xenopus: their tissue distribution and voltage dependence. Ratzan WJ, Evsikov AV, Okamura Y, Jaffe LA. J Cell Physiol. 2011 Nov;226(11):2740-6. doi: 10.1002/jcp.22854. 10.1002/jcp.22854 PubMed 21618529
