Purposeserves as PCR-template to generate HR donors for C-terminal GFP-tag
-
Depositing Lab
-
Depositing OrganizationLudwig-Maximilians-Universitaet Muenchen (LMU)
Located in Germany -
Publication
-
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 52528 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 52528-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 52528-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepJet1.2
-
Backbone manufacturerThermor Fisher / Fermentas
- Backbone size w/o insert (bp) 2972
- Total vector size (bp) 4477
-
Vector typeblunt cloning kit
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)XL1 Blue
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameeGFP and Blasticigin resistance cassette
-
SpeciesAequorea victoria
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer taatacgactcactataggg
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 52528-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 52528-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMH3 was a gift from Klaus Foerstemann (Addgene plasmid # 52528 ; http://n2t.net/addgene:52528 ; RRID:Addgene_52528) -
For your References section:
Efficient chromosomal gene modification with CRISPR/cas9 and PCR-based homologous recombination donors in cultured Drosophila cells. Bottcher R, Hollmann M, Merk K, Nitschko V, Obermaier C, Philippou-Massier J, Wieland I, Gaul U, Forstemann K. Nucleic Acids Res. 2014 Apr 19. 10.1093/nar/gku289 PubMed 24748663

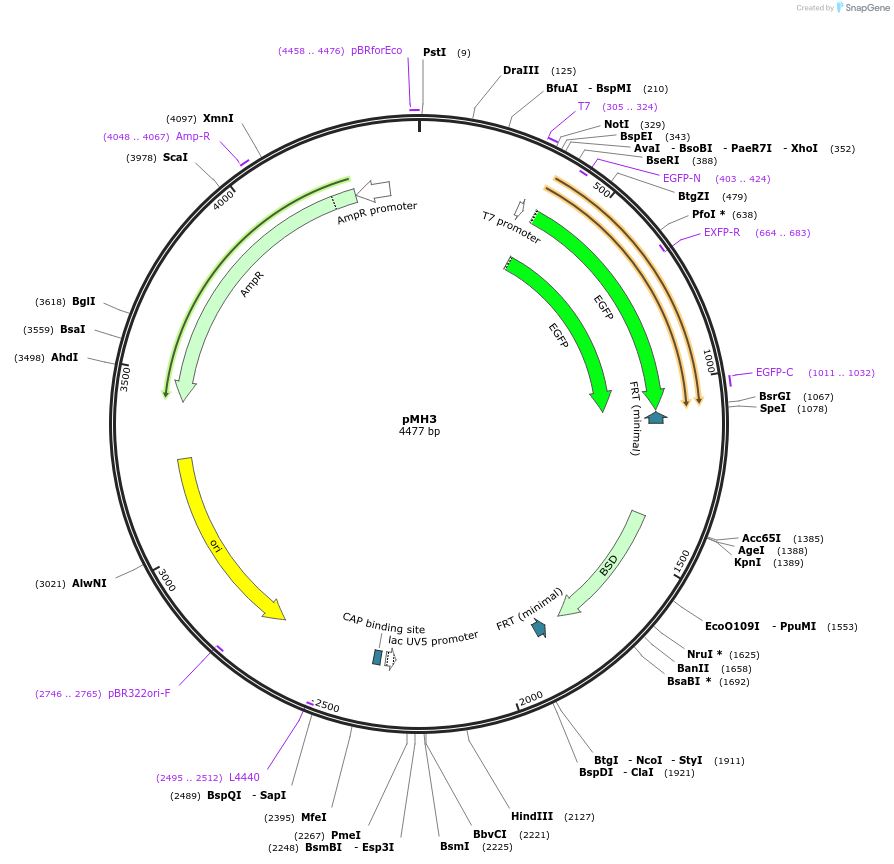

Map uploaded by the depositor.
