pSP64-hERG1a T623A
(Plasmid #53055)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 53055 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 53055-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 53055-D100 100 μg of DNA in Tris buffer $585
Add to Cart

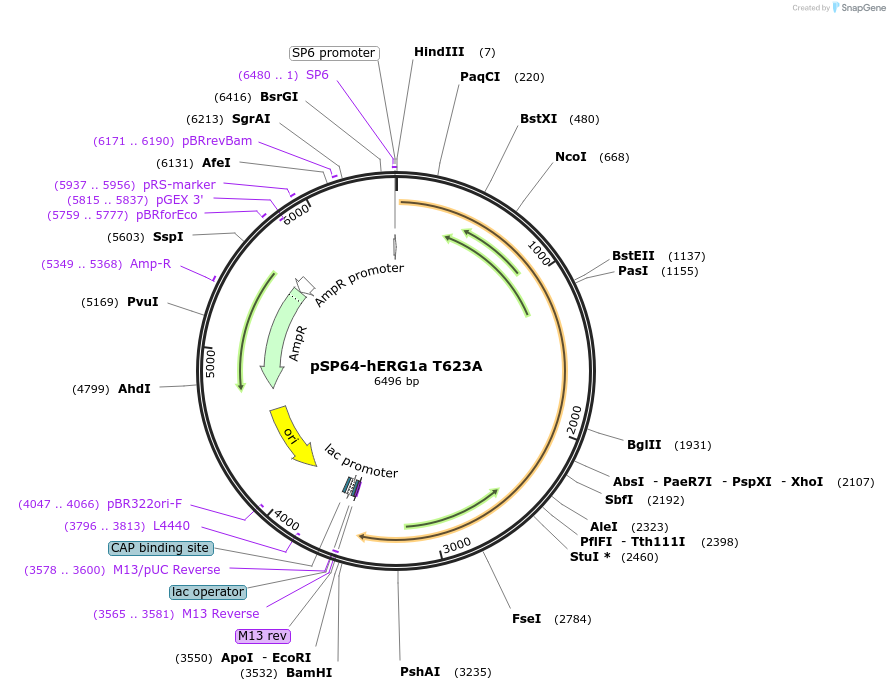

Backbone

  • Vector backbone
    pSP64
  • Backbone manufacturer
    Promega
  • Backbone size w/o insert (bp) 3017
  • Total vector size (bp) 6497
  • Vector type
    Xenopus Oocyte Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Potassium voltage-gated channel subfamily H member 2
  • Alt name
    ERG1, HERG, LQT2, HERG1, Kv11.1, KCNH2
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    3480
  • Mutation
    changed Threonine 623 to Alanine
  • Entrez Gene
    KCNH2 (a.k.a. ERG-1, ERG1, H-ERG, HERG, HERG1, Kv11.1, LQT2, SQT1)
  • Promoter SP6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer SP6
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSP64-hERG1a T623A was a gift from Michael Sanguinetti (Addgene plasmid # 53055 ; http://n2t.net/addgene:53055 ; RRID:Addgene_53055)

  • For your References section:

    A structural basis for drug-induced long QT syndrome. Mitcheson JS, Chen J, Lin M, Culberson C, Sanguinetti MC. Proc Natl Acad Sci U S A. 2000 Oct 24;97(22):12329-33. 10.1073/pnas.210244497 PubMed 11005845
