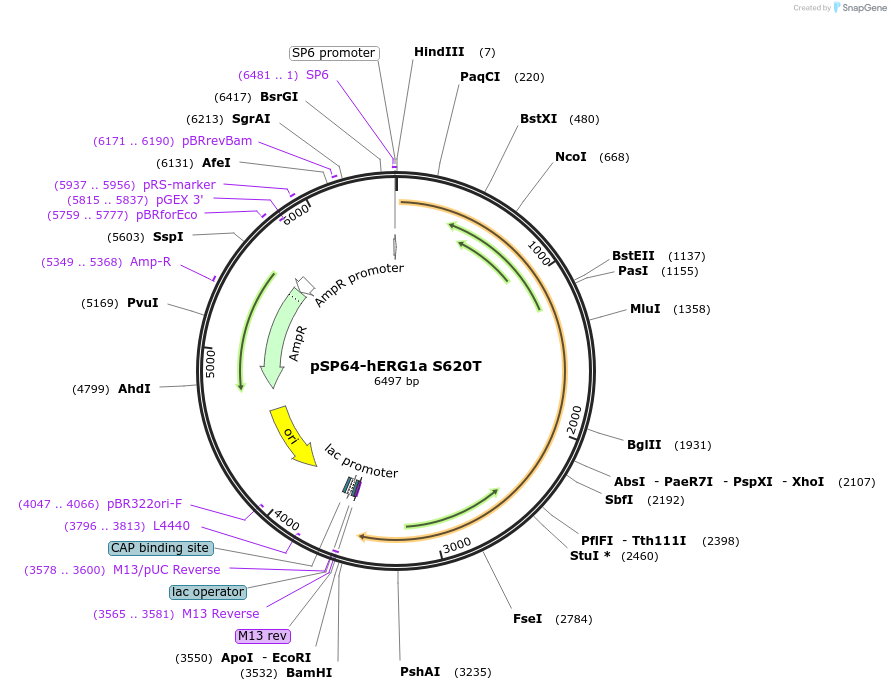

pSP64-hERG1a S620T
(Plasmid #53059)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 53059 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pSP64
  • Backbone manufacturer
    Promega
  • Backbone size w/o insert (bp) 3017
  • Total vector size (bp) 6497
  • Vector type
    Xenopus Oocyte Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Potassium voltage-gated channel subfamily H member 2
  • Alt name
    ERG1, HERG, LQT2, HERG1, Kv11.1, KCNH2
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    3480
  • Mutation
    changed Serine 620 to Threonine
  • Entrez Gene
    KCNH2 (a.k.a. ERG-1, ERG1, H-ERG, HERG, HERG1, Kv11.1, LQT2, SQT1)
  • Promoter SP6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer SP6
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSP64-hERG1a S620T was a gift from Michael Sanguinetti (Addgene plasmid # 53059 ; http://n2t.net/addgene:53059 ; RRID:Addgene_53059)
  • For your References section:

    Mechanism of action of a novel human ether-a-go-go-related gene channel activator. Casis O, Olesen SP, Sanguinetti MC. Mol Pharmacol. 2006 Feb;69(2):658-65. Epub 2005 Nov 11. 10.1124/mol.105.019943 PubMed 16284303
