PurposeFluorescent probe: SNAP-25B, N-terminally-tagged with monomeric Citrine, connected with a 4 amino acid linker. Expressed in mammalian cells, used with mCer-4aa-VAMP2 to measure FRET and dispersion.
-
Depositing Lab
-
Depositing OrganizationUniversity of California, Berkeley
Located in United States of America -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 53235 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 53235-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 53235-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepECFP-C1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 4700
- Total vector size (bp) 5333
-
Modifications to backboneECFP has been substituted by citrine, which was further made monomeric by introducing the A206K mutation using the Stratagene QuikChange Site-Directed Mutagenesis Kit, and exchanged with EYFP by digestion with restriction endonucleases after ligation.
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameSNAP-25B
-
Alt namesynaptosomal-associated protein, 25kDa
-
SpeciesR. norvegicus (rat)
-
Insert Size (bp)621
-
GenBank IDAB003992 AB003992.1
-
Entrez GeneSnap25 (a.k.a. SNAP-25B, SNAP-25a)
-
Tags
/ Fusion Proteins
- mCitrine (N terminal on backbone)
- 4aa-linker (N terminal on insert)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 53235-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 53235-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
mCit-4aa-SNAP25B was a gift from Robert Zucker (Addgene plasmid # 53235 ; http://n2t.net/addgene:53235 ; RRID:Addgene_53235) -
For your References section:
Dance of the SNAREs: assembly and rearrangements detected with FRET at neuronal synapses. Degtyar V, Hafez IM, Bray C, Zucker RS. J Neurosci. 2013 Mar 27;33(13):5507-23. doi: 10.1523/JNEUROSCI.2337-12.2013. 10.1523/JNEUROSCI.2337-12.2013 PubMed 23536066

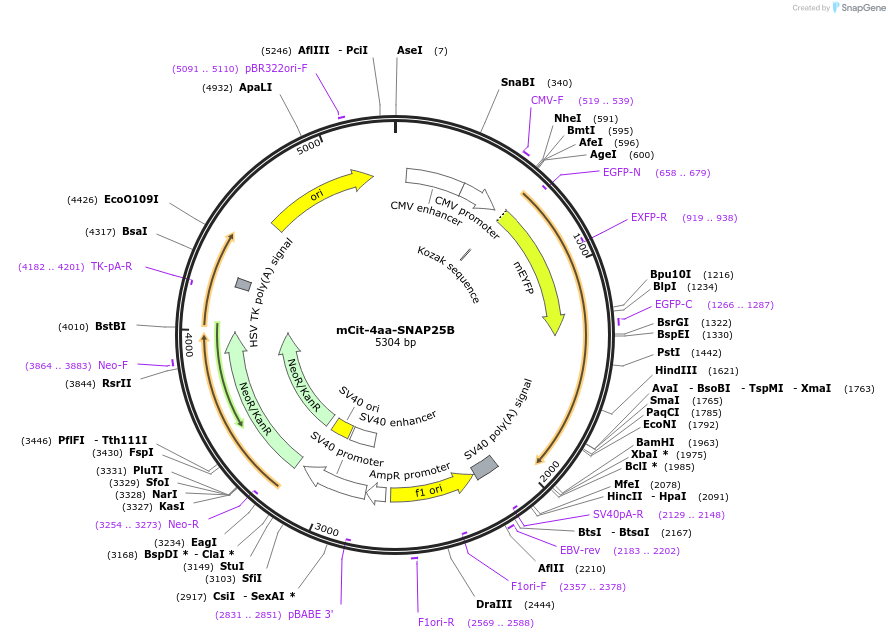

Map uploaded by the depositor.
