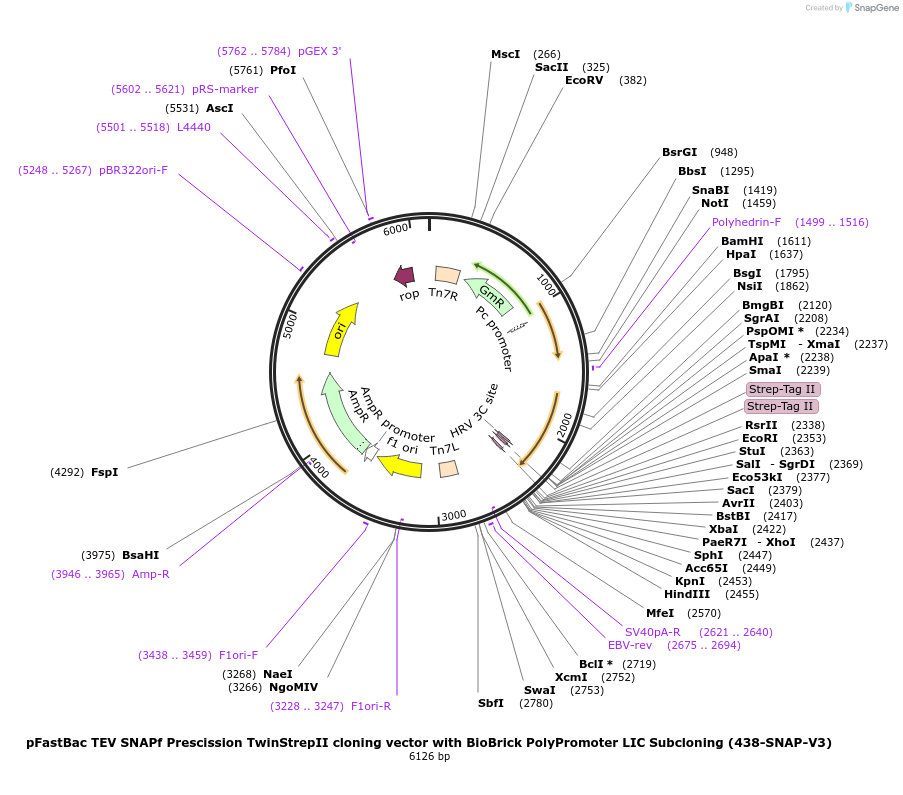

pFastBac TEV SNAPf Prescission TwinStrepII cloning vector with BioBrick PolyPromoter LIC Subcloning (438-SNAP-V3)
(Plasmid #55223)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 55223 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pFastBac
  • Vector type
    Insect Expression
  • Tags / Fusion Proteins
    • SNAPf (C terminal on backbone)
    • TwinStrepII (C terminal on backbone)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    High Copy

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer LicBac dual V1 F (5'-cctataactattccggattattcataccgtc-3')
  • 3′ sequencing primer LicBac dual V1 Rv (5'-caggttcagggggaggtgtg-3')
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

In order to increase the efficiency of subcloning with the Series-11 Macrobac plasmids we developed a new strategy the uses LIC (Ligation Independent Cloning). The problem with the Series-11 ligation mediated subcloning was that when the plasmid size approached or exceeded 20 kb we had to screen many colonies to find a positive. We developed a strategy to use LIC for subcloning. Because this method uses no ligase, the cloning background associated with re-ligation of the empty plasmid are eliminated.

438-SNAP-V3 has a TEV cleavable TwinStrepII-Prescission-SNAPf on the C-terminus.

The 438-SNAP-V3 vector use the LICv3 Forward and Reverse primers.

LICv3 Forward - 5'-TTTAAGAAGGAGATATAGTTC-3'
LICv3 Reverse - 5'-GGATTGGAAGTAGAGGTTCTC-3'

As the target plasmid size gets >20kb you may have to increase the amount of DNA you anneal and/or transform. We have found this method gives no background colonies at all and 100% of the colonies we pick are positive. The cells we transform into are XL1Blues with a competency ~6x10^7cfu/ul.

For more information, please see our website: http://qb3.berkeley.edu/qb3/macrolab/

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pFastBac TEV SNAPf Prescission TwinStrepII cloning vector with BioBrick PolyPromoter LIC Subcloning (438-SNAP-V3) was a gift from Scott Gradia (Addgene plasmid # 55223 ; http://n2t.net/addgene:55223 ; RRID:Addgene_55223)
  • For your References section:

    MacroBac: New Technologies for Robust and Efficient Large-Scale Production of Recombinant Multiprotein Complexes. Gradia SD, Ishida JP, Tsai MS, Jeans C, Tainer JA, Fuss JO. Methods Enzymol. 2017;592:1-26. doi: 10.1016/bs.mie.2017.03.008. Epub 2017 May 15. 10.1016/bs.mie.2017.03.008 PubMed 28668116
