PurposeExpression of G protein-coupled receptors for PRESTO-Tango: parallel receptorome expression and screening via transcriptional output, with transcriptional activation following arrestin translocation
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||66390||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.

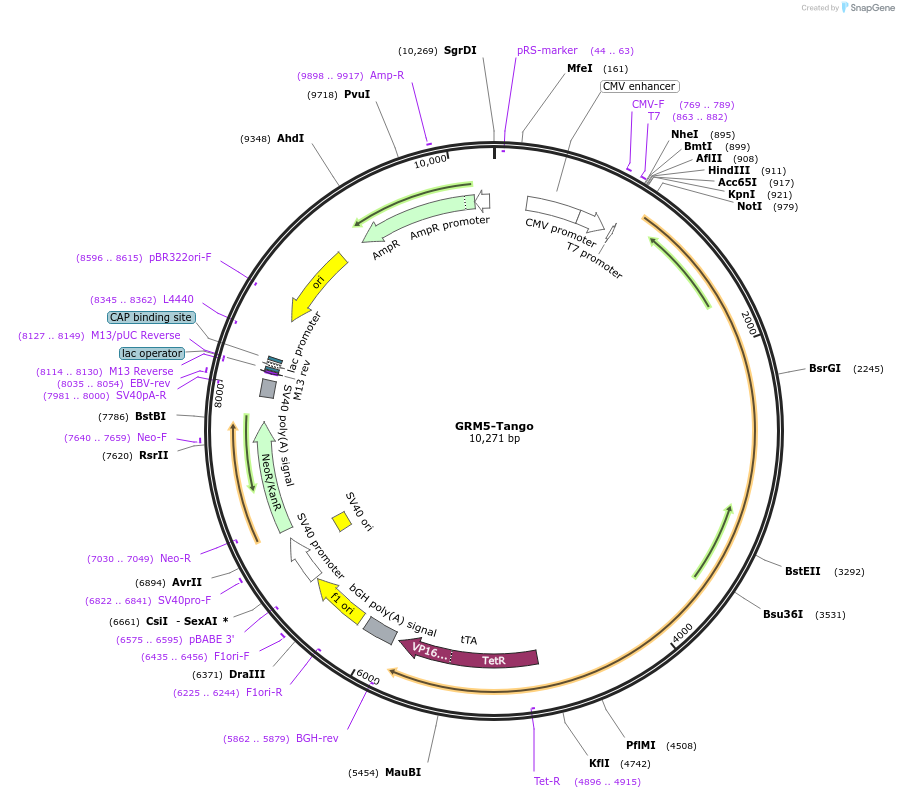

Vector backboneempty Tango
- Backbone size w/o insert (bp) 6632
Vector typeMammalian Expression
Selectable markersNeomycin (select with G418)
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Copy numberHigh Copy
SpeciesH. sapiens (human)
Insert Size (bp)3636
Entrez GeneGRM5 (a.k.a. GPRC1E, MGLUR5, PPP1R86, mGlu5)
- Promoter CMV
/ Fusion Protein
- FLAG (N terminal on backbone)
- Cloning method Restriction Enzyme
- 5′ cloning site NotI (not destroyed)
- 3′ cloning site XhoI (unknown if destroyed)
- 5′ sequencing primer CMV-F
- 3′ sequencing primer Tet-R (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
Please note: Most of the PRESTO-Tango vectors do not contain the XhoI cut site downstream of the tTA sequence and instead carry an XbaI site. If you need to perform an XhoI digest we recommend sequencing with a forward primer at the C-terminus of tTA to determine which of the two sites is present. Suggested primer: 5-gagctccacttagacggcgagg-3. Original backbone was pcDNA3.1(+).
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:GRM5-Tango was a gift from Bryan Roth (Addgene plasmid # 66390 ; http://n2t.net/addgene:66390 ; RRID:Addgene_66390)
For your References section:PRESTO-Tango as an open-source resource for interrogation of the druggable human GPCRome. Kroeze WK, Sassano MF, Huang XP, Lansu K, McCorvy JD, Giguere PM, Sciaky N, Roth BL. Nat Struct Mol Biol. 2015 May;22(5):362-9. doi: 10.1038/nsmb.3014. Epub 2015 Apr 20. 10.1038/nsmb.3014 PubMed 25895059
