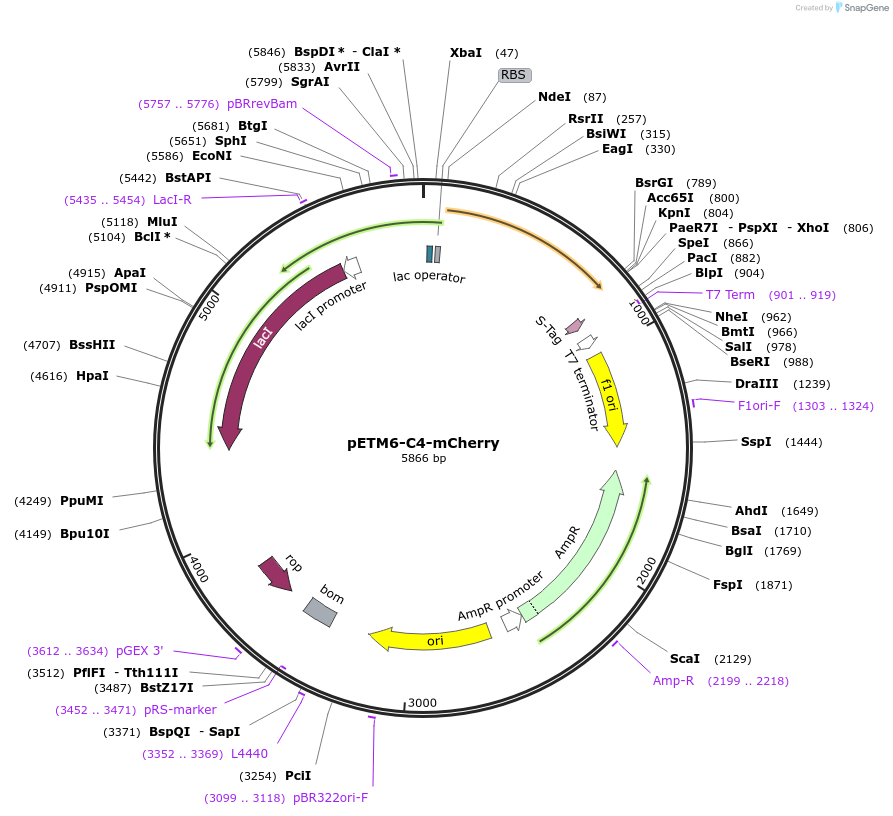

pETM6-C4-mCherry
(Plasmid #66530)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 66530 Plasmid sent as bacteria in agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pETM6
  • Backbone size w/o insert (bp) 5155
  • Total vector size (bp) 5866
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mCherry
  • Species
    Synthetic
  • Insert Size (bp)
    711
  • Mutation
    Codon Optimized for E. coli
  • Promoter Mutant T7 Promoter - C4

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer cgagatcgatctcgatcccg
  • 3′ sequencing primer GCT AGT TAT TGC TCA GCG G
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pETM6-C4-mCherry was a gift from Mattheos Koffas (Addgene plasmid # 66530)
  • For your References section:

    ePathOptimize: A Combinatorial Approach for Transcriptional Balancing of Metabolic Pathways. Jones JA, Vernacchio VR, Lachance DM, Lebovich M, Fu L, Shirke AN, Schultz VL, Cress B, Linhardt RJ, Koffas MA. Sci Rep. 2015 Jun 11;5:11301. doi: 10.1038/srep11301. 10.1038/srep11301 PubMed 26062452
