Purposeexpression of fluorescent tagged Geph in mammalian cells
-
Depositing Lab
-
Depositing OrganizationUniversity of Zurich
Located in Switzerland -
Citations
-

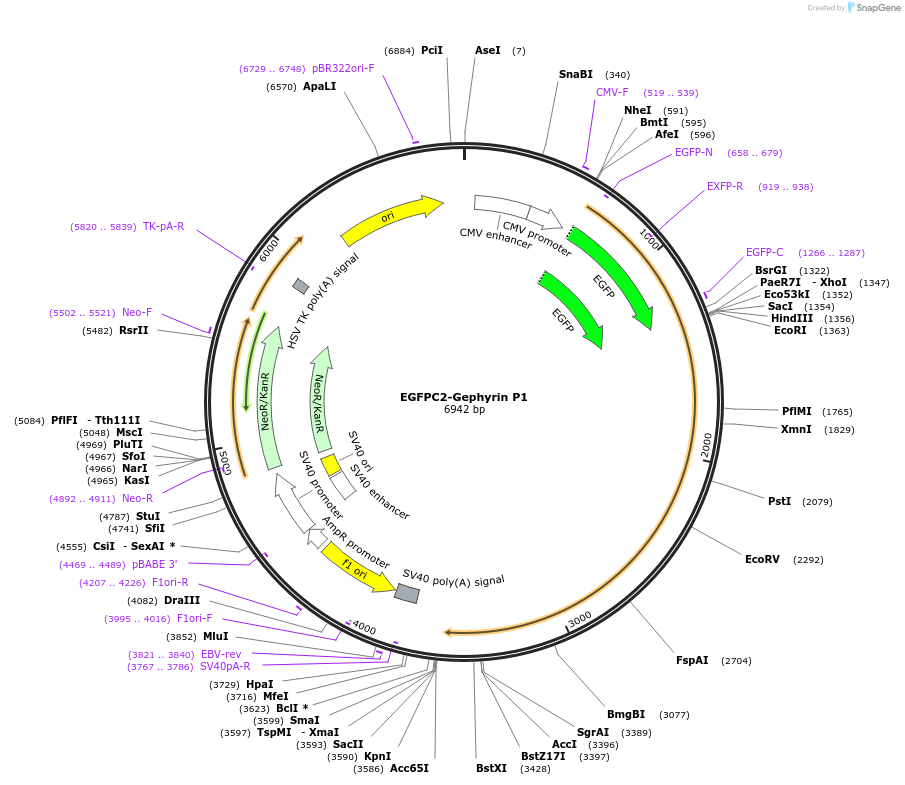

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 68815 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 68815-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 68815-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFPC2
-
Backbone manufacturerContech
- Backbone size w/o insert (bp) 4700
- Total vector size (bp) 6900
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameGephyrin
-
Alt nameGPHN
-
SpeciesR. norvegicus (rat)
-
Insert Size (bp)2200
-
Mutationsilent mutations on internal EcoRI site. Gephyrin D566N (see depositor comment below)
-
GenBank IDNM022865.3
-
Entrez GeneGphn (a.k.a. Geph)
- Promoter CMV
-
Tag
/ Fusion Protein
- EGFP (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer EGFP-C
- 3′ sequencing primer SV40pA-R
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Gephyrin D566N mutation is a polymorphism and is not a concern for plasmid function.
DNA (Catalog # 68815-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 68815-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
EGFPC2-Gephyrin P1 was a gift from Shiva Tyagarajan (Addgene plasmid # 68815 ; http://n2t.net/addgene:68815 ; RRID:Addgene_68815) -
For your References section:
Extracellular signal-regulated kinase and glycogen synthase kinase 3beta regulate gephyrin postsynaptic aggregation and GABAergic synaptic function in a calpain-dependent mechanism. Tyagarajan SK, Ghosh H, Yevenes GE, Imanishi SY, Zeilhofer HU, Gerrits B, Fritschy JM. J Biol Chem. 2013 Apr 5;288(14):9634-47. doi: 10.1074/jbc.M112.442616. Epub 2013 Feb 13. 10.1074/jbc.M112.442616 PubMed 23408424
