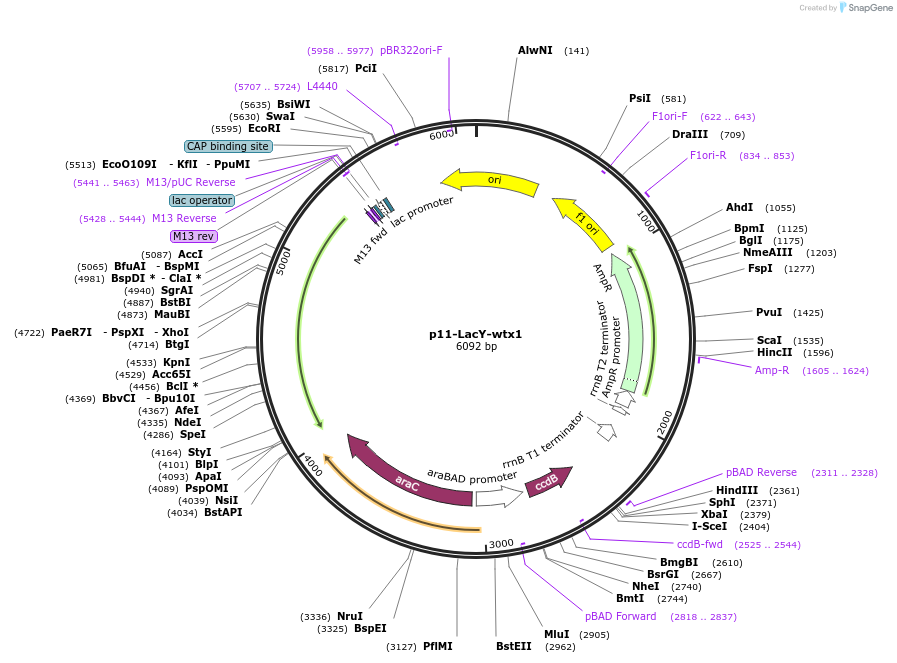

(Plasmid #69056)


Item Catalog # Description Quantity Price (USD)
Plasmid 69056 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone size w/o insert (bp) 4600
  • Total vector size (bp) 4600
  • Selectable markers

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
    ccdB Survival
  • Copy number

Gene/Insert 1

  • Gene/Insert name
  • Entrez Gene
    ccdB (a.k.a. pCoo051)
  • Promoter pBAD

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (unknown if destroyed)
  • 3′ cloning site SphI (unknown if destroyed)
  • 5′ sequencing primer catgca gctagc GGAGTG aaacgatgcagttt aaggtttacacctataaaaga
  • 3′ sequencing primer agtacg gcatgc cgtatg tctaga ttatattccccaaaacatcaggttaat
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
  • Entrez Gene
    lacY (a.k.a. b0343, ECK0340)
  • Promoter pLac
  • Tag / Fusion Protein
    • A177C

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site StuI (unknown if destroyed)
  • 3′ cloning site StuI (unknown if destroyed)
  • 5′ sequencing primer gagctc aggcct gactcactatagggagaccg
  • 3′ sequencing primer ctagct aggccttaagcgacttcattcacct
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Note: Some users of this plasmid report low DNA yields from DNA preps. Addgene recommends users be aware of this when prepping DNA from this plasmid.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p11-LacY-wtx1 was a gift from Huimin Zhao (Addgene plasmid # 69056 ; ; RRID:Addgene_69056)
  • For your References section:

    A highly sensitive selection method for directed evolution of homing endonucleases. Chen Z, Zhao H. Nucleic Acids Res. 2005 Oct 6;33(18):e154. 10.1093/nar/gni148 PubMed 16214805
