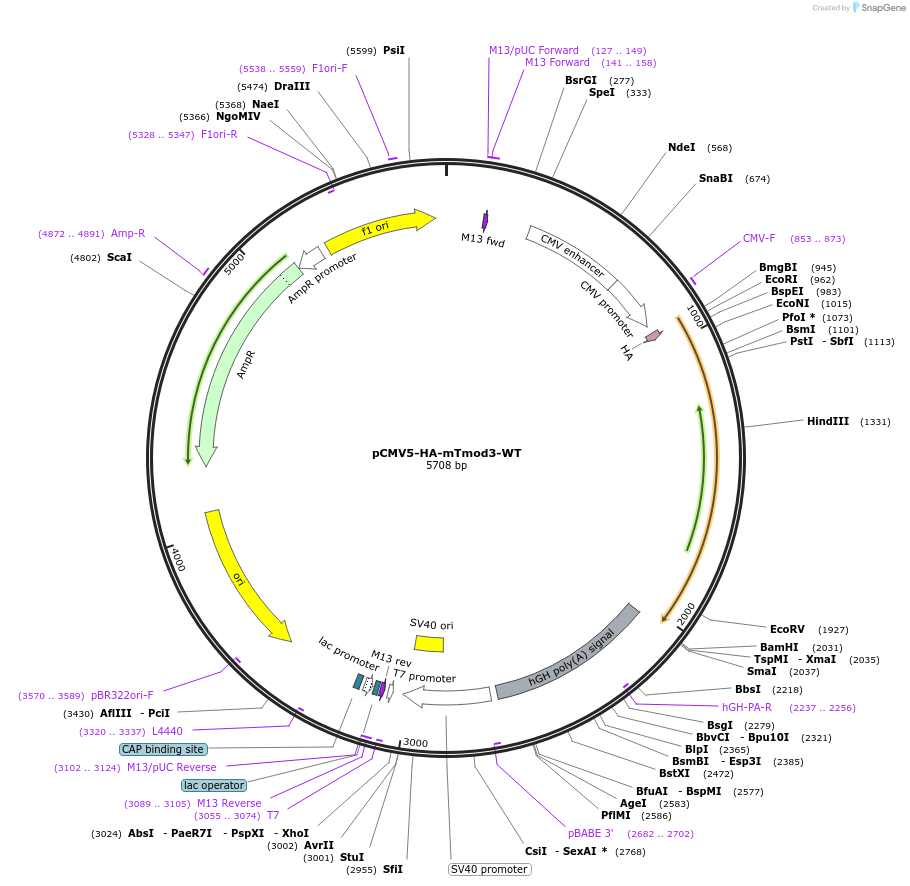

pCMV5-HA-mTmod3-WT
(Plasmid #70752)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 70752 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 70752-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 70752-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pCMV5-HA
  • Backbone size w/o insert (bp) 4699
  • Total vector size (bp) 5708
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Tropomodulin3
  • Alt name
    U-Tmod
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    1059
  • Entrez Gene
    Tmod3 (a.k.a. U-Tmod, UTMOD)
  • Promoter CMV
  • Tag / Fusion Protein
    • HA (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer GCAAATGGGCGGTAGGCG
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Tropomodulin3 cDNA was originally derived from a 3T3-L1 adipocyte cDNA library in the laboratory.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV5-HA-mTmod3-WT was a gift from Weiping Han (Addgene plasmid # 70752 ; http://n2t.net/addgene:70752 ; RRID:Addgene_70752)

  • For your References section:

    Tropomodulin3 is a novel Akt2 effector regulating insulin-stimulated GLUT4 exocytosis through cortical actin remodeling. Lim CY, Bi X, Wu D, Kim JB, Gunning PW, Hong W, Han W. Nat Commun. 2015 Jan 9;6:5951. doi: 10.1038/ncomms6951. 10.1038/ncomms6951 PubMed 25575350
