FL-mCherry
(Plasmid
#78862)
-
PurposeDULIP negative control (prey) to exclude unspecific background binding
-
Depositing Lab
-
Depositing OrganizationMax-Delbrueck-Centrum fuer Molekulare Medizin (MDC)
Located in Germany -

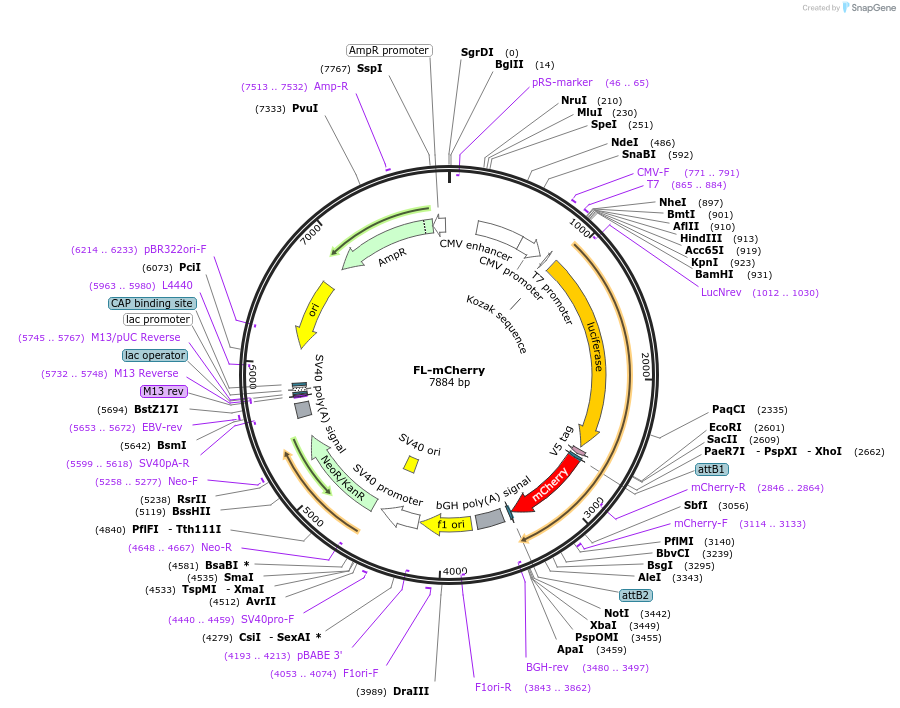

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 78862 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 78862-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 78862-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA3.1(+)
- Backbone size w/o insert (bp) 5428
-
Modifications to backboneFirefly luciferase, mCherry inserted via LR reaction
-
Vector typeMammalian Expression ; Expression vector
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namemCherry
-
Insert Size (bp)530
-
GenBank ID
- Promoter CMV
-
Tag
/ Fusion Protein
- Firefly luciferase, V5-tag (N terminal on insert)
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer CMVF_pcDNA3, T7F
- 3′ sequencing primer bGH reverse
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 78862-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 78862-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
FL-mCherry was a gift from Erich Wanker (Addgene plasmid # 78862 ; http://n2t.net/addgene:78862 ; RRID:Addgene_78862) -
For your References section:
DULIP: A Dual Luminescence-Based Co-Immunoprecipitation Assay for Interactome Mapping in Mammalian Cells. Trepte P, Buntru A, Klockmeier K, Willmore L, Arumughan A, Secker C, Zenkner M, Brusendorf L, Rau K, Redel A, Wanker EE. J Mol Biol. 2015 Oct 23;427(21):3375-88. doi: 10.1016/j.jmb.2015.08.003. Epub 2015 Aug 8. 10.1016/j.jmb.2015.08.003 PubMed 26264872
