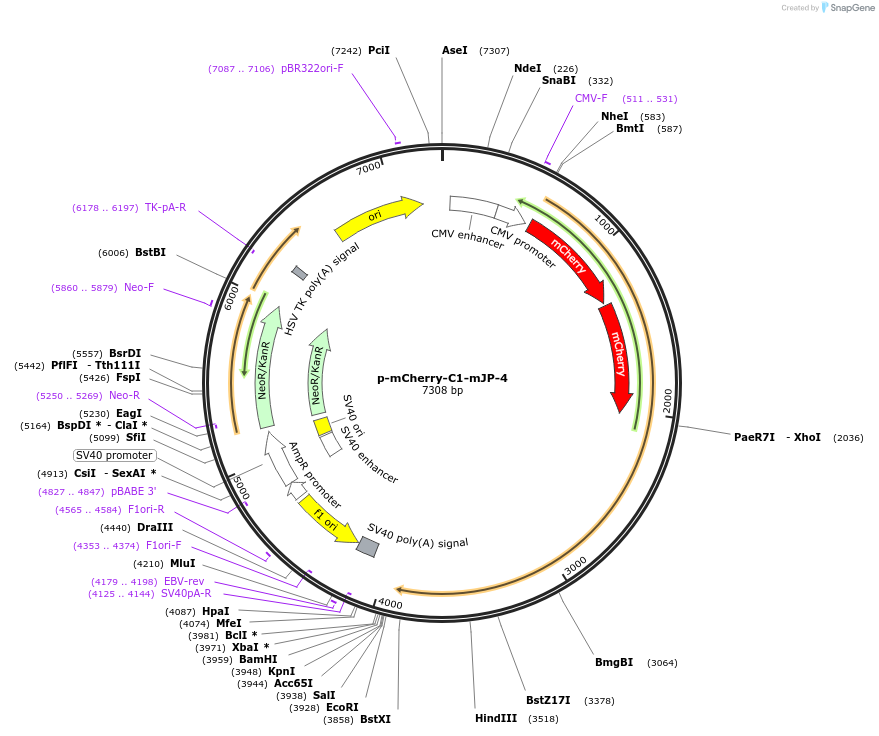

p-mCherry-C1-mJP-4
(Plasmid #79599)

• Purpose: Transient expression
• Depositing Lab: Yousang Gwack
• Depositing Organization: University of California, Los Angeles (UCLA)
  Located in United States of America
• Publication: Woo et al Proc Natl Acad Sci U S A. 2016 Mar 8;113(10):2762-7. doi: 10.1073/pnas.1524229113. Epub 2016 Feb 29.

Backbone

• Vector backbone: pmCherry-C1
• Backbone manufacturer: Clontech
• Backbone size w/o insert (bp): 4700
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Junctophilin-4
• Alt name: Jph4
• Alt name: NM_177049.5
• Species: M. musculus (mouse)
• Insert Size (bp): 1886
• Entrez Gene: Jph4 (a.k.a. 9330157P13Rik, JP-4, JPHL1)
• Promoter: CMV
• Tag / Fusion Protein:
  • 2x mCherry (N terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: XhoI (not destroyed)
• 3′ cloning site: EcoRI (not destroyed)
• 5′ sequencing primer: mCherry-F
• 3′ sequencing primer: SV40pA-R

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

cDNA encoding murine Junctophilin-4 (JP4, clone ID 6810400) was purchased from Open Biosystems (GE Dharmacon)

Please note: This plasmid contains 2x mCherry on the N-terminus of the insert rather than the expected 1x mCherry. This is not expected to impact plasmid function.

DNA (Catalog # 79599-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 79599-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
