PurposeExpression vector for Cas9 peptide array (linker length: 22aa).
-
Depositing Lab
-
Depositing OrganizationGunma University
Located in Japan -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 82560 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 82560-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 82560-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCAG
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha ; TOP10
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namedCas9-5xPlat2AflD
-
GenBank IDLC169509
Resource Information
-
A portion of this plasmid was derived from a plasmid made bypCAG vector is from Dr. Dr Jun-ichi Miyazaki. The dCas9 fragment was amplified from Addgene plasmid 60903 by PCR.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please note that the Addgene verified sequence contains ambiguous bases in the CAG promoter due to GC-rich regions.
DNA (Catalog # 82560-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 82560-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG-dCas9-5xPlat2AflD was a gift from Izuho Hatada (Addgene plasmid # 82560 ; http://n2t.net/addgene:82560 ; RRID:Addgene_82560) -
For your References section:
Targeted DNA demethylation in vivo using dCas9-peptide repeat and scFv-TET1 catalytic domain fusions. Morita S, Noguchi H, Horii T, Nakabayashi K, Kimura M, Okamura K, Sakai A, Nakashima H, Hata K, Nakashima K, Hatada I. Nat Biotechnol. 2016 Aug 29. doi: 10.1038/nbt.3658. 10.1038/nbt.3658 PubMed 27571369

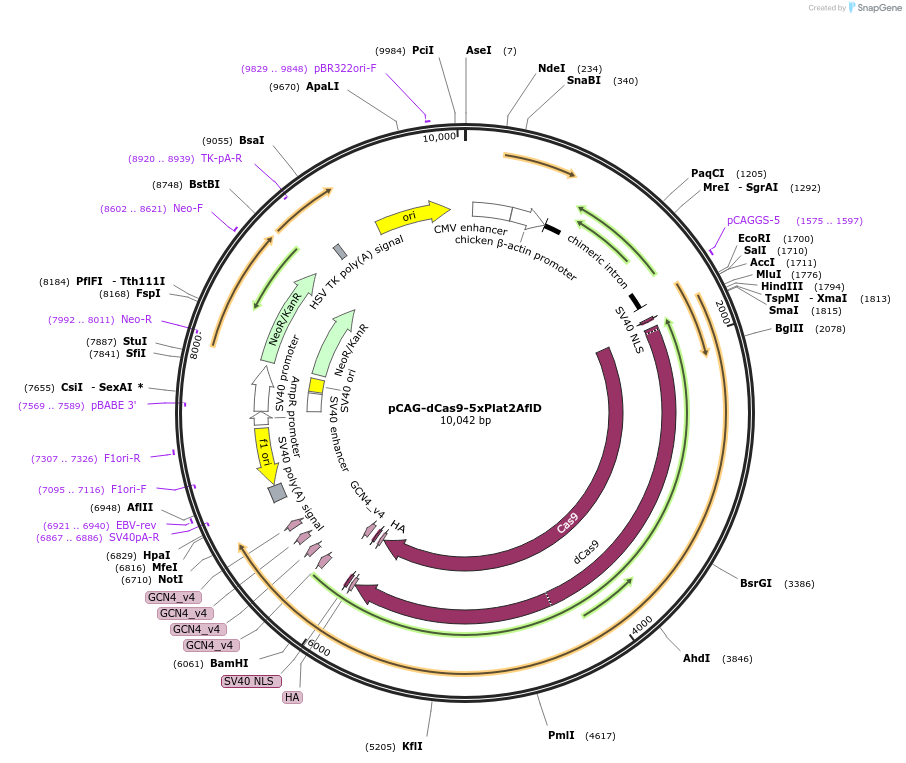

Map uploaded by the depositor.
