PurposeeGFP reporter donor containing double SA cutting sites for NHEJ knock-in
-
Depositing Lab
-
Depositing OrganizationChinese University of Hong Kong
Located in Hong Kong Special Administrative Region of China -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 83576 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 83576-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 83576-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepsuper puro
- Backbone size w/o insert (bp) 4353
- Total vector size (bp) 4601
-
Modifications to backboneTwo sg-A target sites were inserted at the 5’ (BamHI and MfeI sites) and the 3’ (SalI and HpaI sites) of ires-eGFP pSuper-puro plasmid respectively.
-
Vector typeNHEJ donor
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameeGFP
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 83576-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 83576-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
double cut NH-donor was a gift from Bo Feng (Addgene plasmid # 83576 ; http://n2t.net/addgene:83576 ; RRID:Addgene_83576) -
For your References section:
Knock-in of large reporter genes in human cells via CRISPR/Cas9-induced homology-dependent and independent DNA repair. He X, Tan C, Wang F, Wang Y, Zhou R, Cui D, You W, Zhao H, Ren J, Feng B. Nucleic Acids Res. 2016 May 19;44(9):e85. doi: 10.1093/nar/gkw064. Epub 2016 Feb 4. 10.1093/nar/gkw064 PubMed 26850641

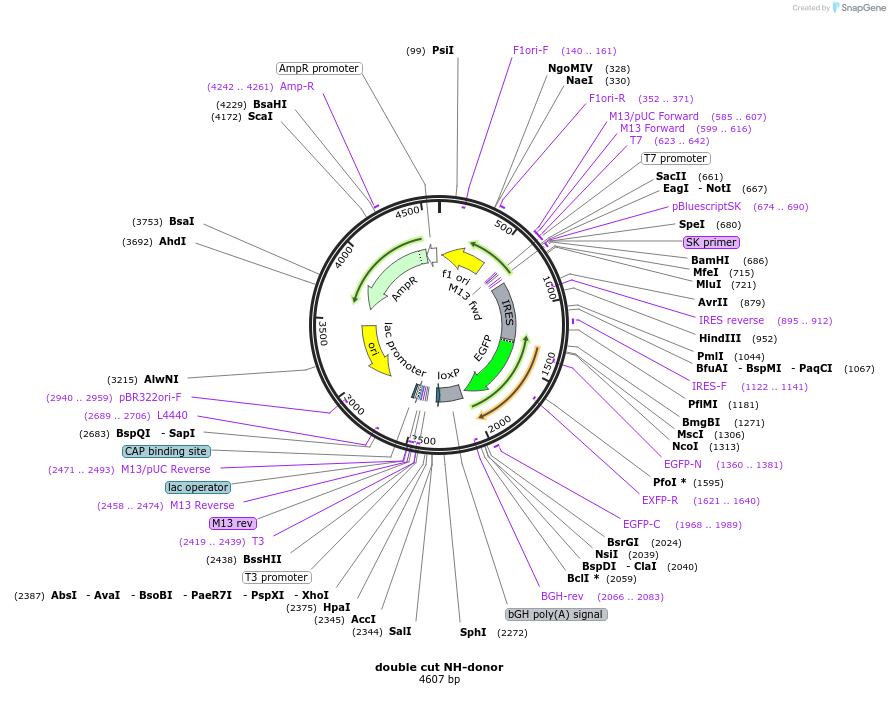

Map uploaded by the depositor.
