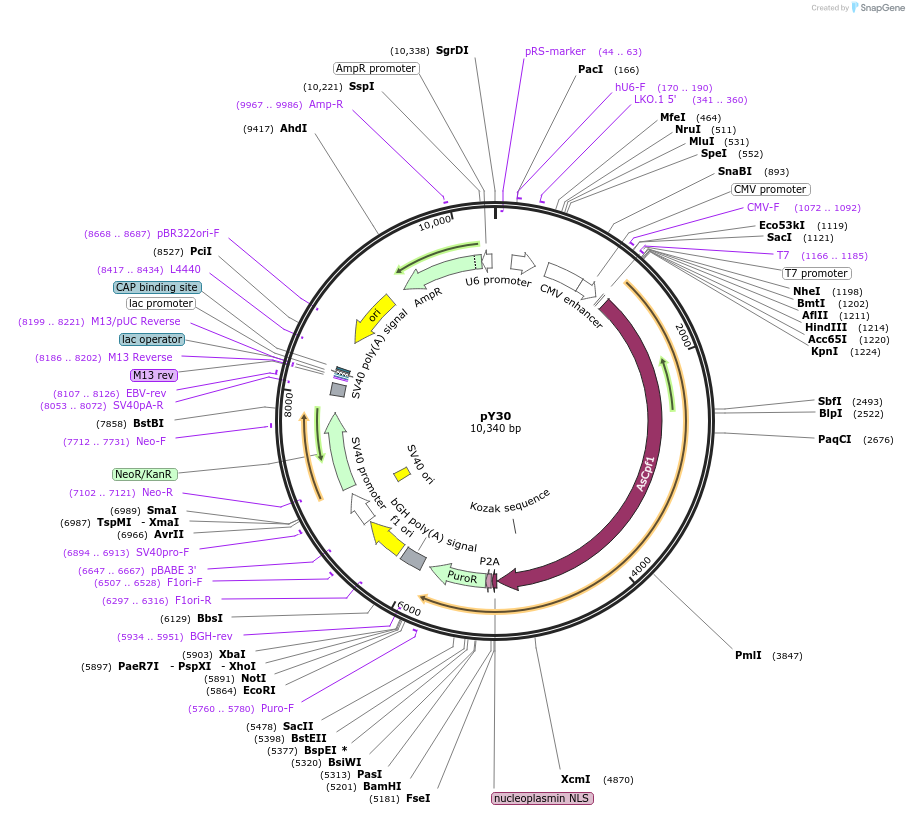

pY30
(Plasmid #84745)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 84745 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone size w/o insert (bp) 5620
  • Total vector size (bp) 10340
  • Vector type
    Mammalian Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    huAsCpf1
  • Species
    Synthetic
  • Promoter CMV
  • Tags / Fusion Proteins
    • NLS (C terminal on insert)
    • 3xHA (C terminal on insert)

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
    puromycin resistance gene
  • Alt name
    puro
  • Species
    Synthetic
  • Insert Size (bp)
    594
  • Tag / Fusion Protein
    • T2A (N terminal on insert)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Modified pY026 plasmid with T2A-puro after huAsCpf1.
Contains a BsmBI cloning cassette for U6 driven crRNA expression.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pY30 was a gift from Feng Zhang (Addgene plasmid # 84745 ; http://n2t.net/addgene:84745 ; RRID:Addgene_84745)
  • For your References section:

    Multiplex gene editing by CRISPR-Cpf1 using a single crRNA array. Zetsche B, Heidenreich M, Mohanraju P, Fedorova I, Kneppers J, DeGennaro EM, Winblad N, Choudhury SR, Abudayyeh OO, Gootenberg JS, Wu WY, Scott DA, Severinov K, van der Oost J, Zhang F. Nat Biotechnol. 2017 Jan;35(1):31-34. doi: 10.1038/nbt.3737. Epub 2016 Dec 5. 10.1038/nbt.3737 PubMed 27918548
