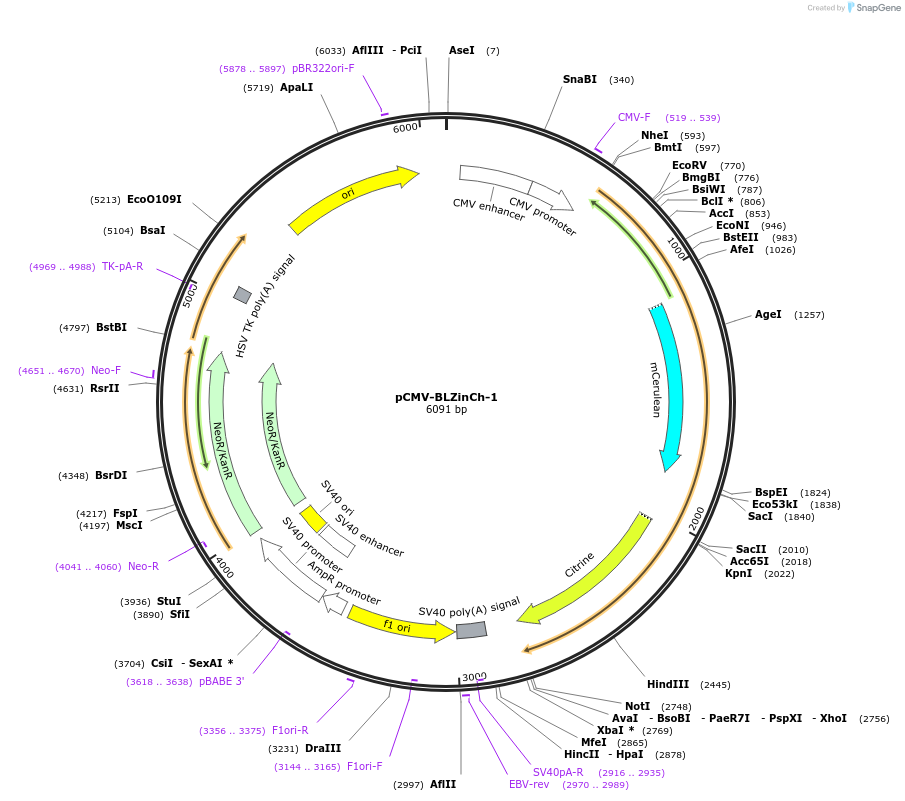

pCMV-BLZinCh-1
(Plasmid #85082)

• Purpose: mammalian vector for the expression of a dual read-out BRET-FRET sensor for intracellular Zn2+ imaging
• Depositing Lab: Maarten Merkx
• Depositing Organization: Technische Universiteit Eindhoven
  Located in Netherlands
• Publication: Aper et al ACS Chem Biol. 2016 Oct 21;11(10):2854-2864. Epub 2016 Sep 1.

Backbone

• Vector backbone: pCMV
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: BL-ZinCh-1
• Promoter: CMV

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: NheI (unknown if destroyed)
• 3′ cloning site: Xho1 (unknown if destroyed)
• 5′ sequencing primer: CMV forward primer

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • NanoLuc Luciferase Limited Use Label License
• Industry Terms:
  • Not Available to Industry

DNA (Catalog # 85082-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • NanoLuc Luciferase Limited Use Label License
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 85082-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • NanoLuc Luciferase Limited Use Label License
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
