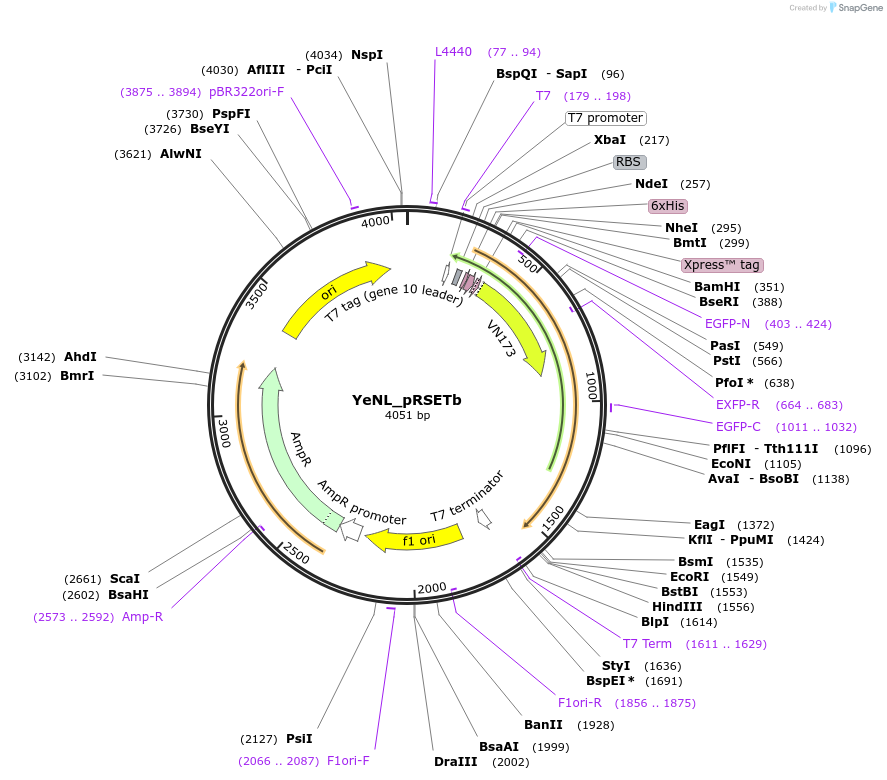

YeNL_pRSETb
(Plasmid #89520)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 89520 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pRSETb
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 2900
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    YeNL
  • Species
    Synthetic
  • Insert Size (bp)
    1191
  • GenBank ID
    LC128716
  • Promoter T7
  • Tag / Fusion Protein
    • His X 6 (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer T7 terminal
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Derived from NanoLuc luciferase

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    YeNL_pRSETb was a gift from Takeharu Nagai (Addgene plasmid # 89520 ; http://n2t.net/addgene:89520 ; RRID:Addgene_89520)
  • For your References section:

    Five colour variants of bright luminescent protein for real-time multicolour bioimaging. Suzuki K, Kimura T, Shinoda H, Bai G, Daniels MJ, Arai Y, Nakano M, Nagai T. Nat Commun. 2016 Dec 14;7:13718. doi: 10.1038/ncomms13718. 10.1038/ncomms13718 PubMed 27966527
