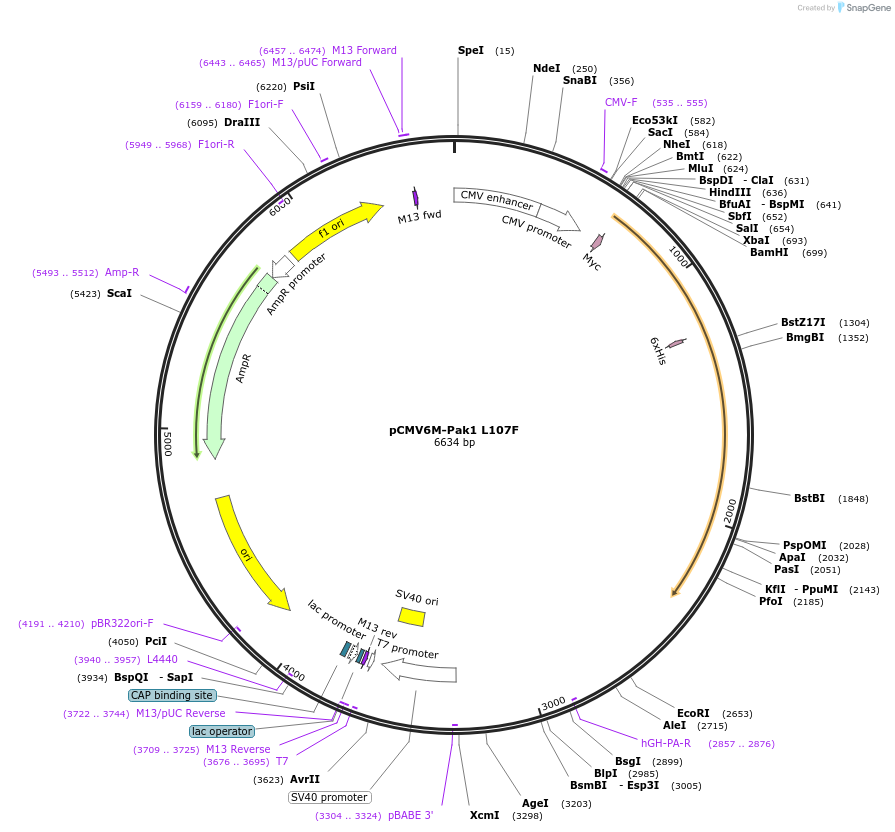

pCMV6M-Pak1 L107F
(Plasmid #12212)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 12212 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    Please grow for at least 20 hours
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Pak1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2000
  • Mutation
    Constitutively active Pak1: L107F
  • Entrez Gene
    PAK1 (a.k.a. IDDMSSD, PAKalpha, alpha-PAK, p65-PAK)
  • Tag / Fusion Protein
    • Myc (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SalI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer TCGTTTAGTGAACCGTCAG
  • 3′ sequencing primer GGAACTTCCAAGGCCAGGA
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Depositor Comments

Addgene has found that this plasmid is extremely slow growing. We recommend keeping plates and liquid cultures growing for at least 20 hours. Overnight will not be sufficient.

There is also an additional mutation in this plasmid - L516I. The L516I mutation, or SNP, has been present from the very beginning (~1995). The crystal structure of Pak1 uses this clone, so it is present there too. The depositor does not think it affects function in any way.

Pak1 may contain a G401S mutation. Depositor states that this mutation should not affect plasmid function.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV6M-Pak1 L107F was a gift from Jonathan Chernoff (Addgene plasmid # 12212 ; http://n2t.net/addgene:12212 ; RRID:Addgene_12212)
  • For your References section:

    p21-activated kinase links Rac/Cdc42 signaling to merlin. Xiao GH, Beeser A, Chernoff J, Testa JR. J Biol Chem. 2002 Jan 11. 277(2):883-6. 10.1074/jbc.C100553200 PubMed 11719502
