CMV-Brainbow-2.1 R
(Plasmid #18723)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 18723 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Vector type
    Mammalian Expression, Cre/Lox
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    hrGFPII-NLS ; EYFP ; tdimer2 ; M-mCerulean

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

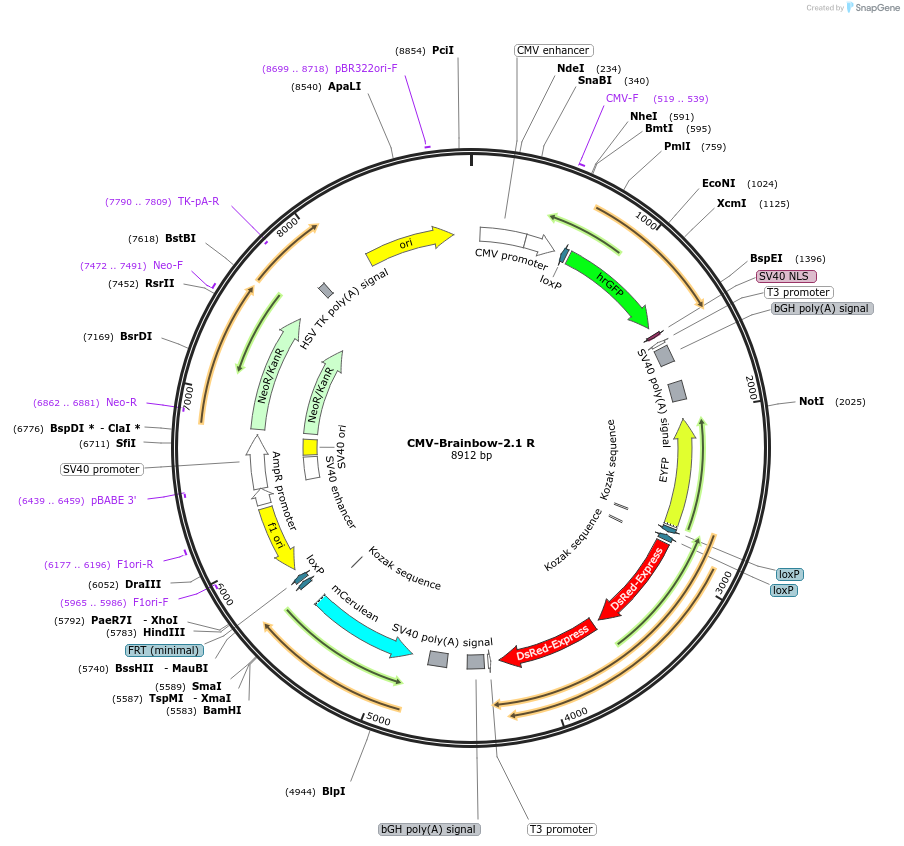

The Author's Map is a representative Brainbow 2.1 construct (M= membrane tethered).

Please see attached PDF for important additional information.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CMV-Brainbow-2.1 R was a gift from Joshua Sanes (Addgene plasmid # 18723 ; http://n2t.net/addgene:18723 ; RRID:Addgene_18723)
  • For your References section:

    Transgenic strategies for combinatorial expression of fluorescent proteins in the nervous system. Livet J, Weissman TA, Kang H, Draft RW, Lu J, Bennis RA, Sanes JR, Lichtman JW. Nature. 2007 Nov 1. 450(7166):56-62. 10.1038/nature06293 PubMed 17972876
