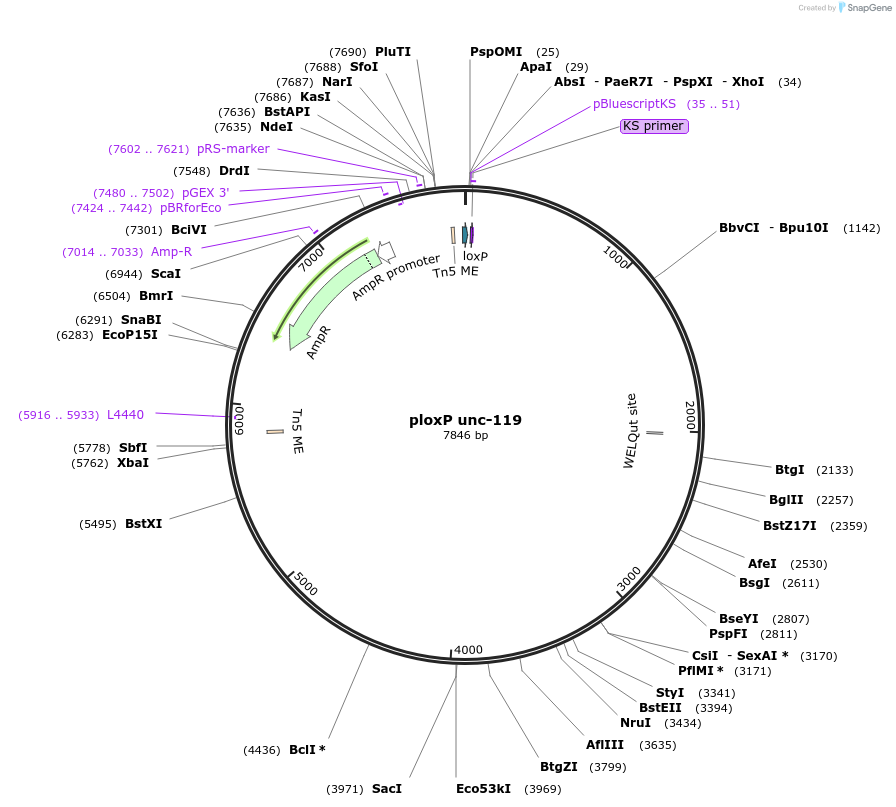

ploxP unc-119
(Plasmid #19185)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 19185 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pMOD4
  • Backbone manufacturer
    Epicentre
  • Backbone size w/o insert (bp) 2100
  • Vector type
    Recombineering

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    EC100pir116
  • Growth instructions
    EC100pir116 or other pir containing bacteria
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    unc-119
  • Species
    C. elegans (nematode)
  • Insert Size (bp)
    5733
  • Mutation
    contains loxP site just 5' to ApaI site
  • Entrez Gene
    unc-119 (a.k.a. CELE_M142.1)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site ApaI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer GTCAGTGAGCGAGGAAGCGGAAG
  • 3′ sequencing primer ATTCAGGCTGCGCAACTGT
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    unc-119 sequence is from pDP#MM016b
  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
  • Article Citing this Plasmid

Depositor Comments

Few mismatches between Addgene and depositor sequence are in the 3' UTR and shouldn't have any impact on plasmid's function

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ploxP unc-119 was a gift from Al Fisher (Addgene plasmid # 19185 ; http://n2t.net/addgene:19185 ; RRID:Addgene_19185)
  • For your References section:

    A simplified, robust, and streamlined procedure for the production of C. elegans transgenes via recombineering. Zhang Y, Nash L, Fisher AL.. BMC Dev Biol. 2008 Dec 30;8(1):119. 10.1186/1471-213X-8-119 PubMed 19116030
