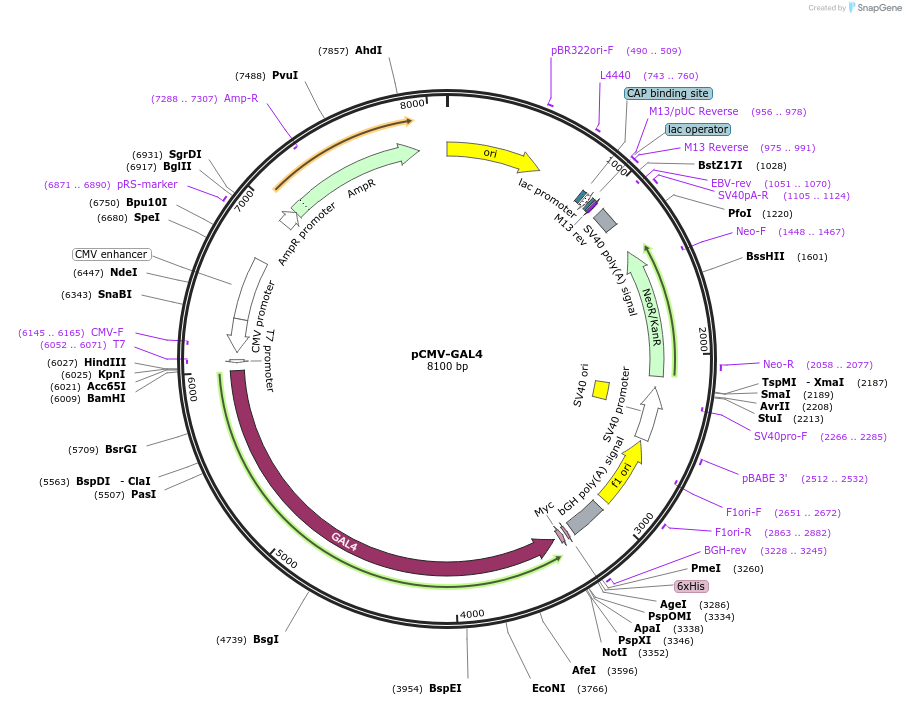

pCMV-GAL4
(Plasmid #24345)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 24345 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3.1-Myc-His-A
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5493
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GAL4
  • Insert Size (bp)
    2600

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CMV-F
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

GAL4 cDNA was PCR amplified using primers PR509
(CCCCGGATCCCAACatgaagctactgtcttctatcgaaca) and PR510
(CGGTTAACGCGGCCGCttactctttttttgggtttggtg), and a lab vector, pCA-GAL4 as the template. The
PCR product was cloned using BamHI and NotI into pCDNA3.1-myc-His-A.

A stop codon precedes the Myc and His tags.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV-GAL4 was a gift from Liqun Luo (Addgene plasmid # 24345 ; http://n2t.net/addgene:24345 ; RRID:Addgene_24345)
  • For your References section:

    The Q System: A Repressible Binary System for Transgene Expression, Lineage Tracing, and Mosaic Analysis. Potter CJ, Tasic B, Russler EV, Liang L, Luo L.. Volume 141, Issue 3, 536-548, 30 April 2010 10.1016/j.cell.2010.02.025 PubMed 20434990
