Vector backbonepUC ori vector
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
Copy numberHigh Copy
Gene/Insert namehumanized S. pyogenes Cas9
Insert Size (bp)4272
- Promoter CBh
/ Fusion Protein
- 3xFLAG (N terminal on insert)
- Cloning method Restriction Enzyme
- 5′ cloning site AgeI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer agggatggttggttggtggg
- 3′ sequencing primer CCAATCCTCCCCCTTGCTGT (Common Sequencing Primers)
Alternate plasmid name: pSpCas9(BB) (PX330)
For plasmid usage, please see the associated publication (Cong et al. Science. 2013, PMID: 23287718), as well as Ran et al. Nat Protoc. 2013, PMID: 24157548.
For more information, please see the following web page: http://crispr.genome-engineering.org
For more information on Zhang Lab CRISPR Plasmids please refer to: http://www.addgene.org/crispr/zhang/
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pX330-U6-Chimeric_BB-CBh-hSpCas9 was a gift from Feng Zhang (Addgene plasmid # 42230)
For your References section:Multiplex Genome Engineering Using CRISPR/Cas Systems. Cong L, Ran FA, Cox D, Lin S, Barretto R, Habib N, Hsu PD, Wu X, Jiang W, Marraffini LA, Zhang F. Science. 2013 Jan 3. 10.1126/science.1231143 PubMed 23287718

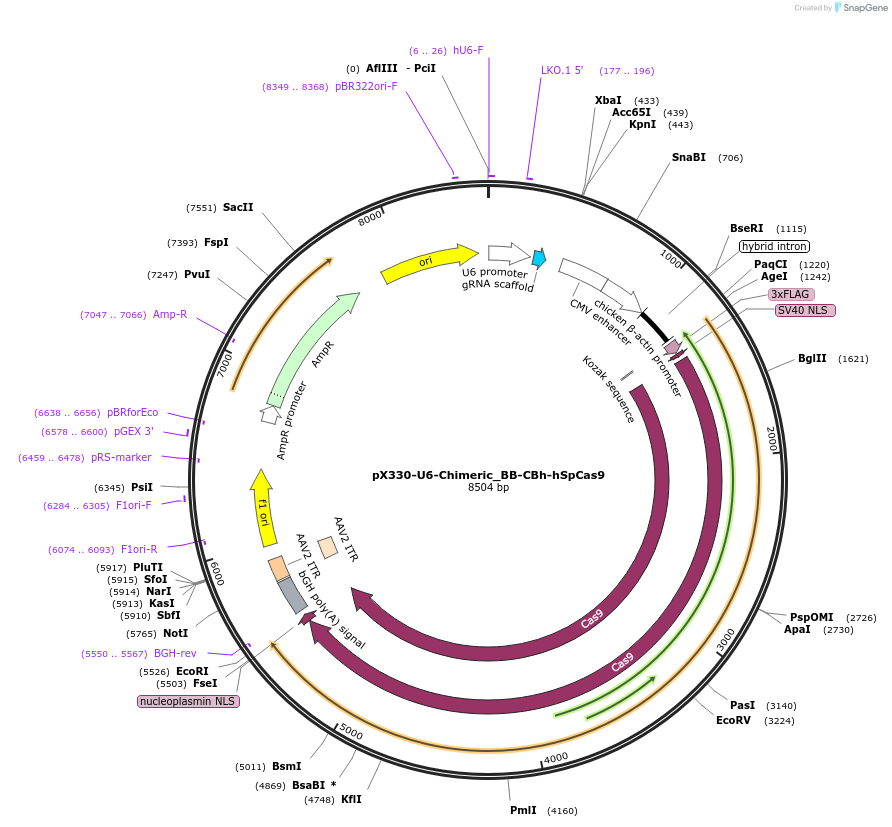

Map generated by Addgene from full sequence supplied by depositor.
Map generated by Addgene from full sequence.
Map uploaded by the depositor.
