Zhang lab CRISPR icon Zhang Lab CRISPR Plasmids Available from Addgene


CRISPR (Clustered Regularly Interspaced Short Palindromic Repeats) is a microbial nuclease system involved in defense against invading phages and plasmids. CRISPR loci in microbial hosts contain a combination of CRISPR-associated (Cas) genes as well as non-coding RNA elements capable of programming the specificity of the CRISPR-mediated nucleic acid cleavage. We have harnessed the type II CRISPR nuclease system to facilitate genome editing in mammalian cells (Cong et al., Science 2013, Ran et al., Cell 2013, Ran et al., Nature Protocols 2013).

For cloning information, please view: Icon Zhang Lab General Cloning Protocol (147.2 KB)

SpCas9 Plasmids

The CRISPR/Cas system can be implemented in mammalian cells by co-expressing the S. pyogenes Cas9 (SpCas9) nuclease along with the guide RNA. For most applications, we recommend using Cas9 with the single guide RNA (sgRNA), which is derived from a synthetic fusion of the CRISPR RNA (crRNA) and the trans-activating crRNA (tracrRNA; Hsu et al., Nature Biotechnology 2013). We also have an older system using two cassettes to express the CRISPR RNA array and tracrRNA separately (Cong et al., Science 2013). Additionally, we have a plasmid expressing SpCas9 alone without sgRNA. Full references are below.

1. SpCas9 (or SpCas9n, D10A nickase) + single guide RNA: These plasmids contain two expression cassettes, a human codon-optimized SpCas9 or SpCas9n, and the single guide RNA. The vector can be digested using BbsI, and a pair of annealed oligos (design is indicated below) can be cloned scarlessly into the vector before the sgRNA scaffold. The oligos are designed based on the target site sequence (20bp) and need to be followed on the 3' end by a 3bp NGG PAM sequence. We have found that adding an additional guanine nucleotide to the 5’ of 20-bp guide can increase targeting efficiency. SpCas9 and SpCas9n with 2a-Puro and 2a-EGFP are also available.

pX330 plasmid cartoon

2. SpCas9 (or SpCas9n, D10A nickase) + CRISPR RNA array + tracrRNA: This plasmid contains three expression cassettes. To target a given site, the plasmid can be digested using BbsI, and a pair of annealed oligos (design is indicated below) can be cloned into the CRISPR array. The oligos are designed based on the target site sequence (30bp) and need to be followed on the 3' end by a 3bp NGG PAM sequence.

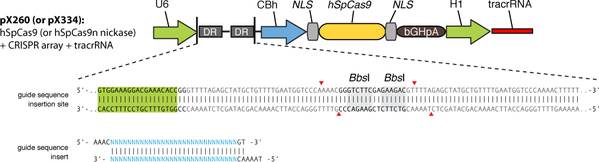

pX260 plasmid cartoon

3. SpCas9 alone: This plasmid contains a single cassette expressing human codon-optimized SpCas9; sgRNA can be co-transfected as PCR amplicons (Ran et al., Nature Protocols 2013).

plasmid pX165 map
Individual human codon-optimized SpCas9 plasmids can be ordered via the links below:
  • 42230: PX330; SpCas9 and single guide RNA
  • 48138: PX458; SpCas9-2A-EGFP and single guide RNA
  • 62988: PX459; SpCas9-2A-Puro and single guide RNA
  • 48873: PX460; SpCas9n (D10A nickase) and single guide RNA
  • 48140: PX461; SpCas9n-2A-EGFP (D10A nickase) and single guide RNA
  • 62987: PX462; SpCas9n-2A-Puro (D10A nickase) and single guide RNA
  • 48137: PX165; SpCas9

Return to top

GeCKO Screening Library

GeCKO are pooled lentiviral CRISPR libraries (both human and mouse) for performing genome-wide knockout screens. The libraries are available in two formats:

  • 1 vector system - lentiCRISPR - sgRNA and SpCas9 together
  • 2 vector system - lentiCas9-Blast and lentiGuide-Puro (sgRNA)

Browse the Addgene GeCKO Library CRISPR page for more information. Full references are below.

Return to top

Cas9 SAM transcriptional activation plasmids and screening library

CRISPR/Cas9 Synergistic Activation Mediator (SAM) is an engineered protein complex for the transcriptional activation of endogenous genes. It consists of three components:
  1. A nucleolytically inactive Cas9-VP64 fusion
  2. A sgRNA incorporating two MS2 RNA aptamers at the tetraloop and stemloop 2
  3. The MS2-P65-HSF1 activation helper protein

Full references are below.

Pooled genome-wide human SAM library

SAM can be combined with a human genome-wide library to activate all known coding isoforms form the RefSeq database (23,430 isoforms) for gain-of-function screening. For more information, please visit the Addgene SAM library page.

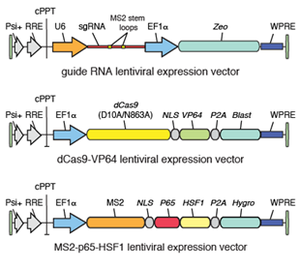

cartoon of sam library plasmids

Targeted gene activation using SAM

There are two sets of 3 vectors each available for mammalian endogenous gene activation using SAM:

  1. Addgene plasmids #61422 - #61424 were designed for transient transfection:
    • 61422: Expresses dCAS9-VP64 activator with 2A GFP
    • 61423: Expresses the MS2-P65-HSF1 activator helper complex with 2A GFP
    • 61424: sgRNA cloning backbone with MS2 loops at tetraloop and stemloop - Contains BbsI sites for insertion of guide sequences
  2. Addgene plasmids #61425 - #61427 are intended for lentivirus production:
    • 61425: lentiviral vector encoding dCAS9-VP64 with 2A Blast resistance marker
    • 61426: lentiviral vector encoding the MS2-P65-HSF1 activator helper complex with a 2A Hygro resistance marker
    • 61427: lentiviral sgRNA cloning backbone with MS2 loops at tetraloop and stemloop 2 and EF1a-zeo resistance marker. Contains BsmBI sites for insertion of guide sequences

Visit the Zhang Lab SAM website for additional information, protocols, and an activator sgRNA design tool.

Return to top

AAV - In vivo Genome Editing

The Zhang Lab has both single- and dual-vector systems that allow the delivery of Cas9 and sgRNA in vivo via adeno-associated virus (AAV). The single vector system uses a smaller Cas9 from S. aureus (SaCas9) that has been human codon-optimized, and packages both the SaCas9 gene and its single guide RNA (sgRNA) into one plasmid (Ran et al., Nature 2015). The dual vector system uses S. pyogenes Cas9 (SpCas9), using one vector to express SpCas9, and another to express up to three sgRNAs (Swiech et al., Nature Biotechnology 2014). Full references are below.

Available plasmids are described below:

  • 61591: PX601; CMV-driven SaCas9; U6-driven sgRNA
  • 61593: PX602; TBG-driven SaCas9; U6-driven sgRNA
  • 61952: PX600; CMV-driven SaCas9
  • 60957: PX551; Truncated MeCP2 promoter-driven SpCas9; for neuronal expression
  • 60958: PX552; U6 promoter-driven; for sgRNA cloning; has GFP-KASH for FACS sorting
  1. SaCas9 + single guide RNA: These plasmids contain two expression cassettes, a human codon-optimized SaCas9 driven by either the ubiquitous cytomegalovirus (CMV, PX601 [#61591]) or liver-specific tyroxine binding globulin (TBG, PX602 [#61593]) promoter, and a U6-driven single guide RNA. The vector can be digested using BsaI (This is different from BbsI, which is used in the SpCas9 plasmid series.), and a pair of annealed oligos can be cloned scarlessly into the vector before the sgRNA scaffold. The oligos are designed based on the target site sequence (21-22bp) and need to be followed on the 3' end by a 3bp NGG PAM sequence. We have found that adding an additional guanine nucleotide to the 5’ of 21-bp guide can increase targeting efficiency. These plasmids use the inverted terminal repeats (ITR) from AAV serotype 2.
    px601 plasmid map
  2. SaCas9 only: This plasmid (PX600, #61592) contains a single cassette expressing human codon-optimized SaCas9; SaCas9 sgRNA can be co-transfected as PCR amplicons using a protocol similar to SpCas9 sgRNA PCR (Ran et al., Nature Protocols 2013).
    px600 plasmid map
  3. SpCas9 Cas9: The PX551 plasmid (AAV-SpCas9, #60957) contains a single cassette expressing human codon-optimized SpCas9, driven by the truncated MeCP2 promoter (pAAV-pMecp2-SpCas9-spA) for expressing Cas9 in neurons.
  4. SpCas9 guide acceptor: The PX552 plasmid (#60958) contains pAAV-U6::sgRNA(SapI)_hSyn-GFP-KASH-bGH (SpGuide acceptor). This is a AAV plasmid for sgRNA cloning. GFP-KASH fusion facilitates FACS sorting of cells and nuclei.

Return to top

AAV - Cas9 mouse

CRISPR-Cas9 is a versatile genome editing technology for studying the function of genetic elements. To broadly enable the application of Cas9 in vivo and ex vivo, the Zhang Lab established Cre-dependent and constitutively expressing Cas9 knockin mice (Platt et al., Cell 2014). In these mice the CRISPR-Cas9 system can be implemented by delivering Cre and sgRNA to a Cre-dependent mouse or sgRNA to a constitutively Cas9-expressing mouse. Described here are AAV vectors that can be combined with Cas9 in a wide range of applications. Full references are below.

The Cas9 knockin mouse can be purchased from Jackson Labs:

Available plasmids are described below:

  • 61408: Targeting vector for the mouse Rosa26 locus; Used to make Cas9 knockin mouse
  1. Vectors for cancer modeling
    • 60224: sgRNAs targeting KRAS, p53, and LKB1, plus luciferase-2A-Cre recombinase, and KrasG12D HDR template
    • 60225: control for AAV-KPL; sgRNA targeted to LacZ, plus luciferase-2A-Cre recombinase
    • 60226: sgRNA cloning backbone with luciferase-2A-Cre recombinase
  2. Vectors for brain genome editing
    • 60227: sgRNA targeted to NeuN, plus Cre recombinase
    • 60228: sgRNA targeted to LacZ, plus Cre recombinase
    • 60229: sgRNA cloning backbone with Cre recombinase
    • 60230: sgRNA targeted to NeuN, plus Cre recombinase-2A-EGFP-KASH
    • 60231: sgRNA cloning backbone with Cre recombinase-2A-EGFP-KASH
Detailed backbone cloning information: Icon CRISPR-Cas9 mouse toolbox protocol (637.8 KB)

CRISPR-Cas9 Cre expression vectors for cancer modeling

Using Cas9 mice, Platt et al. simultaneously modeled the dynamics of KRAS, p53 and LKB1, the top three significantly mutated genes in lung adenocarcinoma. Delivery of a single AAV vector (AAV-KPL) in the lung generated loss-of-function mutations in p53 and Lkb1, as well as homology directed repair-mediated KrasG12D mutations, leading to macroscopic tumors of adenocarcinoma pathology. These plasmids as well as a backbone plasmid for cloning new targets are described here.

  1. #60224 - AAV:ITR-U6-sgRNA(Kras)-U6-sgRNA(p53)-U6-sgRNA(Lkb1)-pEFS-Rluc-2A-Cre-shortPA-KrasG12D_HDRdonor-ITR (AAV-KPL)

    This plasmid contains two expression cassettes, Renilla luciferase-2A-Cre recombinase and sgRNAs targeting the mouse genes: Kras, p53, and Lkb1. This plasmid also contains a KrasG12D homology directed repair donor template.

    diagram of plasmid with sgRNAs targeting Kras, p53, and Lkb1
  2. #60225 - AAV:ITR-U6-sgRNA(LacZ)-pEFS-Rluc-2A-Cre-WPRE-hGHpA-ITR

    This plasmid contains two expression cassettes, Renilla luciferase-2A-Cre recombinase and an sgRNA targeted to LacZ, which is not present within the mouse genome. This plasmid is used as a control for AAV-KPL.

    diagram of control plasmid with luciferase and Cre recombinase
  3. #60226 - AAV:ITR-U6-sgRNA(backbone)-pEFS-Rluc-2A-Cre-WPRE-hGHpA-ITR

    This plasmid contains two expression cassettes, Renilla luciferase-2A-Cre recombinase and an sgRNA backbone for cloning new targeted plasmids. The plasmid can be digested using SapI, which will reveal sticky ends to enable the rapid ligation of annealed and phosphorylated oligos designed based on the target site sequence (20bp).

    diagram of empty backbone plasmid with luciferase and Cre recombinase

CRISPR-Cas9 Cre expression vectors for genome editing in the brain

Using Cas9 mice Platt et al. demonstrated in vivo genome editing in the brain by AAV-mediated expression of an sgRNA targeting the neuronal-specific gene NeuN. As a control they designed an sgRNA targeting LacZ, which is not present in the mouse genome. These plasmids are described here.

  1. #60227 - AAV:ITR-U6-sgRNA(NeuN)-pCBh-Cre-WPRE-hGHpA-ITR

    This plasmid contains two expression cassettes, Cre recombinase and an sgRNA targeted to the mouse NeuN gene.

    diagram of plasmid with Cre recombinase with sgRNA targeting mouse NeuN gene
  2. #60228 - AAV:ITR-U6-sgRNA(LacZ)-pCBh-Cre-WPRE-hGHpA-ITR

    This plasmid contains two expression cassettes, Cre recombinase and an sgRNA targeted to LacZ, which is not present within the mouse genome.

    diagram of plasmid with Cre recombinase with sgRNA targeting LacZ
  3. #60229 - AAV:ITR-U6-sgRNA(backbone)-pCBh-Cre-WPRE-hGHpA-ITR

    This plasmid contains two expression cassettes, Cre recombinase and an sgRNA backbone for cloning new targeted plasmids. The plasmid can be digested using SapI, which will reveal sticky ends to enable the rapid ligation of annealed and phosphorylated oligos designed based on the target site sequence (20bp).

    diagram of empty backbone plasmid with Cre recombinase
  4. #60230 - AAV:ITR-U6-sgRNA(NeuN)-hSyn-Cre-2A-EGFP-KASH-WPRE-shortPA-ITR

    This plasmid enables Cre/loxP recombination and fluorescence assisted sorting of cells and nuclei in addition to sgRNA expression. This plasmid contains two expression cassettes, Cre recombinase-2A-EGFP-KASH and an sgRNA.

    diagram of plasmid with Cre recombinase and EGFP with sgRNA targeting mouse NeuN gene
  5. #60231 - AAV:ITR-U6-sgRNA(backbone)-hSyn-Cre-2A-EGFP-KASH-WPRE-shortPA-ITR

    This plasmid facilitates Cre/loxP recombination and fluorescence assisted sorting of cells and nuclei in addition to sgRNA expression. This plasmid contains two expression cassettes, Cre recombinase-2A-EGFP-KASH and an sgRNA backbone for cloning new targeted plasmids. The plasmid can be digested using SapI, which will reveal sticky ends to enable the rapid ligation of annealed and phosphorylated oligos designed based on the target site sequence (20bp).

    diagram of empty backbone plasmid with Cre recombinase and EGFP

Return to top

References

SpCas9 plasmids

  • Multiplex Genome Engineering using CRISPR/Cas Systems. Cong L, Ran FA, Cox D, Lin S, Barretto R, Habib N, Hsu PD, Wu X, Jiang W, Marraffini LA, Zhang F. Science. 2013 Jan 3. DOI: 10.1126/science.1231143. PubMed.

  • DNA targeting specificity of RNA-guided Cas9 nucleases. Hsu PD, Scott DA, Weinstein JA, Ran FA, Konermann S, Agarwala V, Li Y, Fine EJ, Wu X, Shalem O, Cradick TJ, Marraffini LA, Bao G, Zhang F. Nat Biotechnol. 2013 Sep;31(9):827-32. doi: 10.1038/nbt.2647. Epub 2013 Jul 21. PubMed.

  • Double nicking by RNA-guided CRISPR Cas9 for enhanced genome editing specificity. Ran FA, Hsu PD, Lin CY, Gootenberg JS, Konermann S, Trevino AE, Scott DA, Inoue A, Matoba S, Zhang Y, Zhang F. Cell. 2013 Sep 12;154(6):1380-9. doi: 10.1016/j.cell.2013.08.021. Epub 2013 Aug 29. Erratum in: Cell. 2013 Oct 10;155(2):479-80. PubMed.

  • Genome engineering using the CRISPR-Cas9 system. Ran FA, Hsu PD, Wright J, Agarwala V, Scott DA, Zhang F. Nat Protoc. 2013 Nov;8(11):2281-308. doi: 10.1038/nprot.2013.143. Epub 2013 Oct 24. PubMed.

Return to SpCas9 plasmids

GeCKO Library

  • Genome-scale CRISPR-Cas9 knockout screening in human cells. Shalem O, Sanjana NE, Hartenian E, Shi X, Scott DA, Mikkelsen TS, Heckl D, Ebert BL, Root DE, Doench JG, Zhang F. Science. 2014 Jan 3;343(6166):84-7. doi: 10.1126/science.1247005. Epub 2013 Dec 12. PubMed.

  • Improved vectors and genome-wide libraries for CRISPR screening. Sanjana NE, Shalem O, Zhang F. Nat Methods. 2014 Aug;11(8):783-4. doi: 10.1038/nmeth.3047. PubMed.

Return to GeCKO Library

SAM Library

  • Genome-scale transcriptional activation by an engineered CRISPR-Cas9 complex. Konermann S*, Brigham MD*, Trevino AE, Joung J, Abudayyeh OO, Barcena C, Hsu PD, Habib N, Gootenberg JS, Nishimasu H, Nureki O, Zhang F. Nature. 2015 Jan 29;517(7536):583-8. doi: 10.1038/nature14136. Epub 2014 Dec 10. PubMed.

Return to SAM Library

AAV In vivo Plasmids

  • In vivo interrogation of gene function in the mammalian brain using CRISPR-Cas9. Swiech L, Heidenreich 1, Banerjee A, Habib N, Li Y, Trombetta J, Sur M, Zhang F. Nat Biotechnol. 2015 Jan;33(1):102-6. doi: 10.1038/nbt.3055. Epub 2014 Oct 19. PubMed.

  • In vivo genome editing using Staphylococcus aureus Cas9. Ran FA, Cong L, Yan WX, Scott DA, Gootenberg JS, Kriz AJ, Zetsche B, Shalem O, Wu X, Makarova KS, Koonin EV, Sharp PA, Zhang F. Nature. 2015 Apr 9;520(7546):186-91. doi: 10.1038/nature14299. Epub 2015 Apr 1. PubMed.

Return to AAV In vivo plasmids

AAV Plasmids with Cas9 Mouse

  • CRISPR-Cas9 knockin mice for genome editing and cancer modeling. Platt RJ, Chen S, Zhou Y, Yim MJ, Swiech L, Kempton HR, Dahlman JE, Parnas O, Eisenhaure TM, Jovanovic M, Graham DB, Jhunjhunwala S, Heidenreich M, Xavier RJ, Langer 9, Anderson DG, Hacohen N, Regev A, Feng G, Sharp PA, Zhang F. Cell. 2014 Oct 9;159(2):440-55. doi: 10.1016/j.cell.2014.09.014. Epub 2014 Sep 25. PubMed.

Return to AAV Cas9 mouse plasmids
