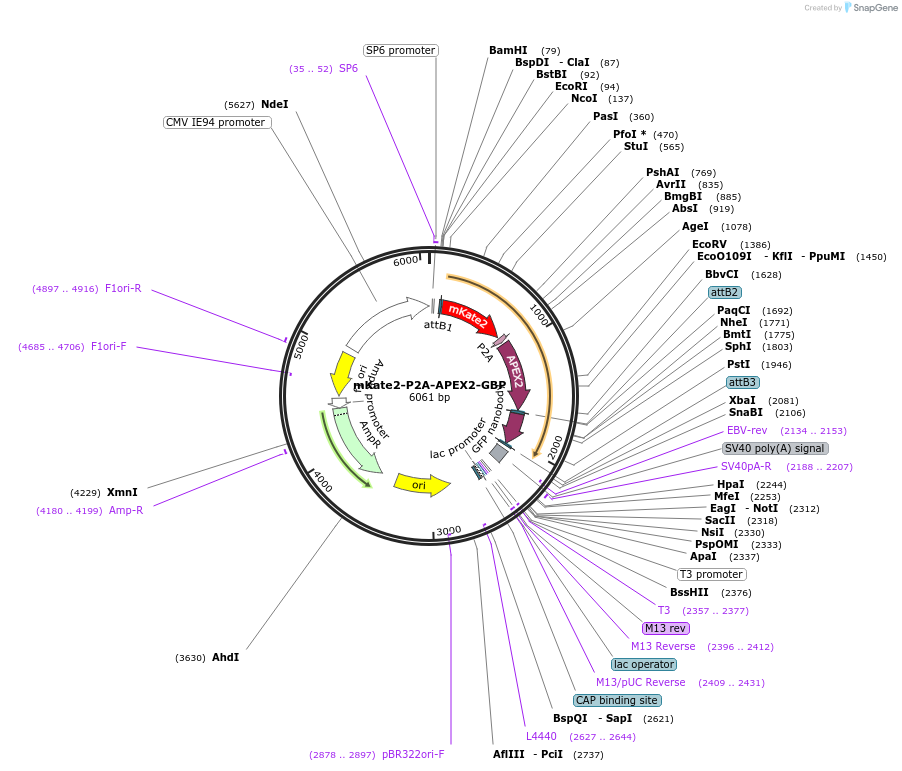

PurposeMammalian expression vector driving APEX2-GBP (EM peroxidase marker fused to GFP-targeting nanobody). Also contains bicistronially expressed cytoplasmic red fluorescent reporter.
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||67650||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
Vector typeMammalian Expression
Growth in Bacteria
Copy numberHigh Copy
- Promoter CMV
- Cloning method Gateway Cloning
- 5′ sequencing primer SP6
- 3′ sequencing primer T3 (Common Sequencing Primers)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:mKate2-P2A-APEX2-GBP was a gift from Rob Parton (Addgene plasmid # 67650 ; http://n2t.net/addgene:67650 ; RRID:Addgene_67650)
For your References section:Modular Detection of GFP-Labeled Proteins for Rapid Screening by Electron Microscopy in Cells and Organisms. Ariotti N, Hall TE, Rae J, Ferguson C, McMahon KA, Martel N, Webb RE, Webb RI, Teasdale RD, Parton RG. Dev Cell. 2015 Nov 23;35(4):513-25. doi: 10.1016/j.devcel.2015.10.016. Epub 2015 Nov 12. 10.1016/j.devcel.2015.10.016 PubMed 26585296
