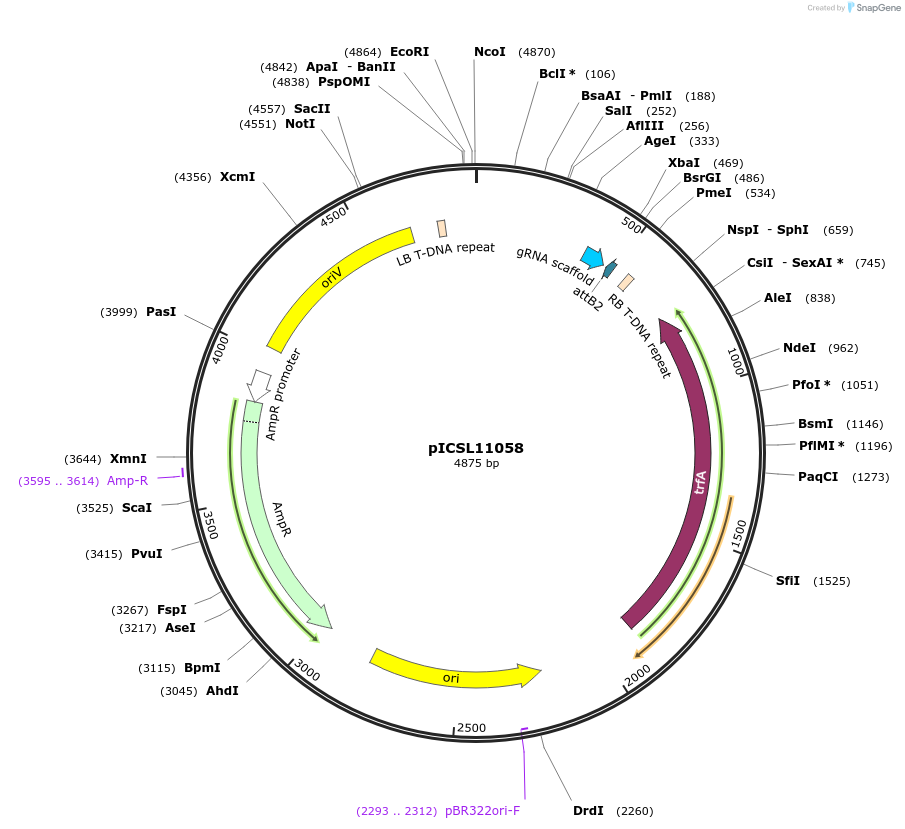

pICSL11058
(Plasmid #68254)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 68254 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pICH47761 (AddGene #48003)
  • Total vector size (bp) 4875
  • Vector type
    Plant Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    Can also be grown in Agrobacterium tumefaciens GV3101/ LBA4404. Will be low copy in this species.
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Promoter_TaU6 + sgRNA_HvPM19_3
  • Species
    Tritucum aestivum and synthetic
  • Insert Size (bp)
    507

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsaI (destroyed during cloning)
  • 3′ cloning site BsaI (destroyed during cloning)
  • 5′ sequencing primer GAACCCTGTGGTTGGCATGCACATAC
  • 3′ sequencing primer CTGGTGGCAGGATATATTGTGGTG
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    A portion of this gene came from AddGene #46966. A gift from Sophien Kamoun.
  • Terms and Licenses

Depositor Comments

Target sequence: GGCTGGCGTTGGTCGTAACA

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pICSL11058 was a gift from Nicola Patron (Addgene plasmid # 68254 ; http://n2t.net/addgene:68254 ; RRID:Addgene_68254)
  • For your References section:

    Induction of targeted, heritable mutations in barley and Brassica oleracea using RNA-guided Cas9 nuclease. Lawrenson T, Shorinola O, Stacey N, Li C, Ostergaard L, Patron N, Uauy C, Harwood W. Genome Biol. 2015 Nov 30;16(1):258. doi: 10.1186/s13059-015-0826-7. 10.1186/s13059-015-0826-7 [pii] PubMed 26616834
