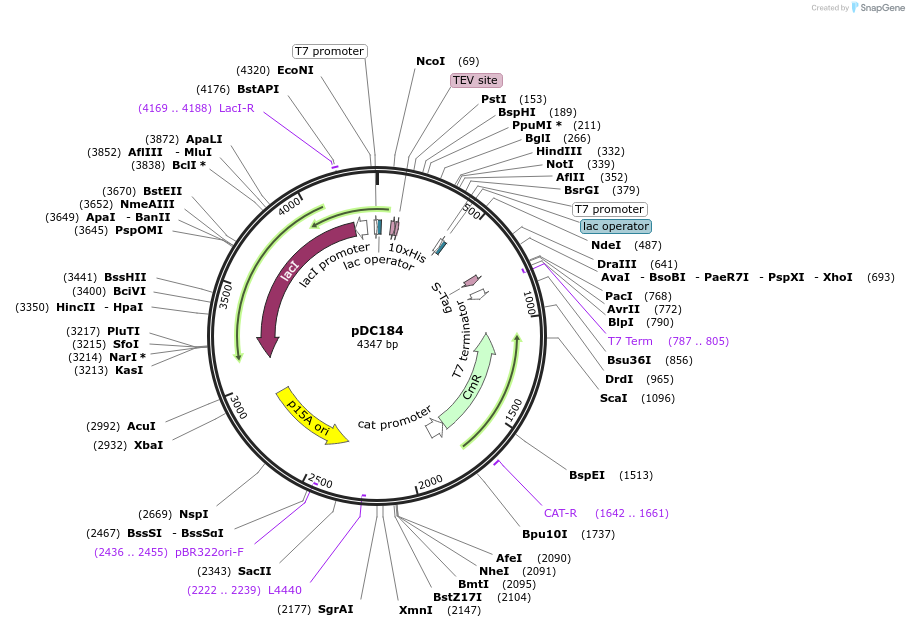

pDC184
(Plasmid #70055)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 70055 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Top10
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    His tagged Synaptobrevin 28-89
  • Alt name
    VAMP2
  • Species
    R. norvegicus (rat)
  • Promoter T7
  • Tag / Fusion Protein
    • 10xHis (N terminal on insert)

Cloning Information for Gene/Insert 1

Gene/Insert 2

  • Gene/Insert name
    Syntaxin 191-256
  • Species
    R. norvegicus (rat)
  • Promoter T7

Cloning Information for Gene/Insert 2

Resource Information

  • Terms and Licenses
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDC184 was a gift from Axel Brunger (Addgene plasmid # 70055 ; http://n2t.net/addgene:70055 ; RRID:Addgene_70055)
  • For your References section:

    Architecture of the synaptotagmin-SNARE machinery for neuronal exocytosis. Zhou Q, Lai Y, Bacaj T, Zhao M, Lyubimov AY, Uervirojnangkoorn M, Zeldin OB, Brewster AS, Sauter NK, Cohen AE, Soltis SM, Alonso-Mori R, Chollet M, Lemke HT, Pfuetzner RA, Choi UB, Weis WI, Diao J, Sudhof TC, Brunger AT. Nature. 2015 Sep 3;525(7567):62-7. doi: 10.1038/nature14975. Epub 2015 Aug 17. 10.1038/nature14975 PubMed 26280336
