pKA-142
(Plasmid #79835)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 79835 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

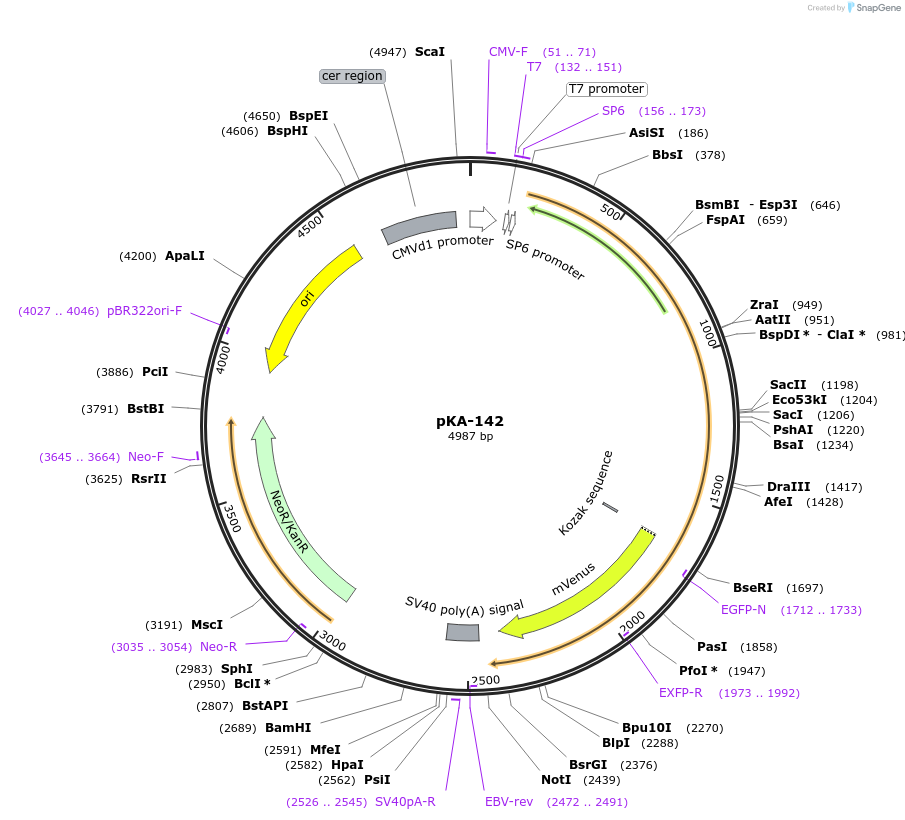

Backbone

  • Vector backbone
    pFC15K
  • Backbone manufacturer
    Promega
  • Backbone size w/o insert (bp) 2800
  • Total vector size (bp) 5000
  • Vector type
    Mammalian Expression
  • Selectable markers
    None

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    PpsR2-mVenus-CAAX
  • Species
    Rhodopseudomonas palustris
  • Insert Size (bp)
    2200
  • Mutation
    RpPpsR2 cysteine 439 changed to serine
  • GenBank ID
    KX063612 CAE26978.1
  • Promoter CMVd1

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AsisI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer ggtaggcgtgtacggtgggag
  • 3′ sequencing primer GCA TCA CAA ATT TCA CAA ATA AAG C
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    A RpPpsR2 gene of R. palustris (NCBI Gene rpa1536) (accession code CAE26978) was provided by M. Papiz (Liverpool University, UK) and T. Beatty (University of British Columbia, Canada).
  • Terms and Licenses
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pKA-142 was a gift from Vladislav Verkhusha (Addgene plasmid # 79835 ; http://n2t.net/addgene:79835 ; RRID:Addgene_79835)
  • For your References section:

    A bacterial phytochrome-based optogenetic system controllable with near-infrared light. Kaberniuk AA, Shemetov AA, Verkhusha VV. Nat Methods. 2016 May 9. doi: 10.1038/nmeth.3864. 10.1038/nmeth.3864 PubMed 27159085
