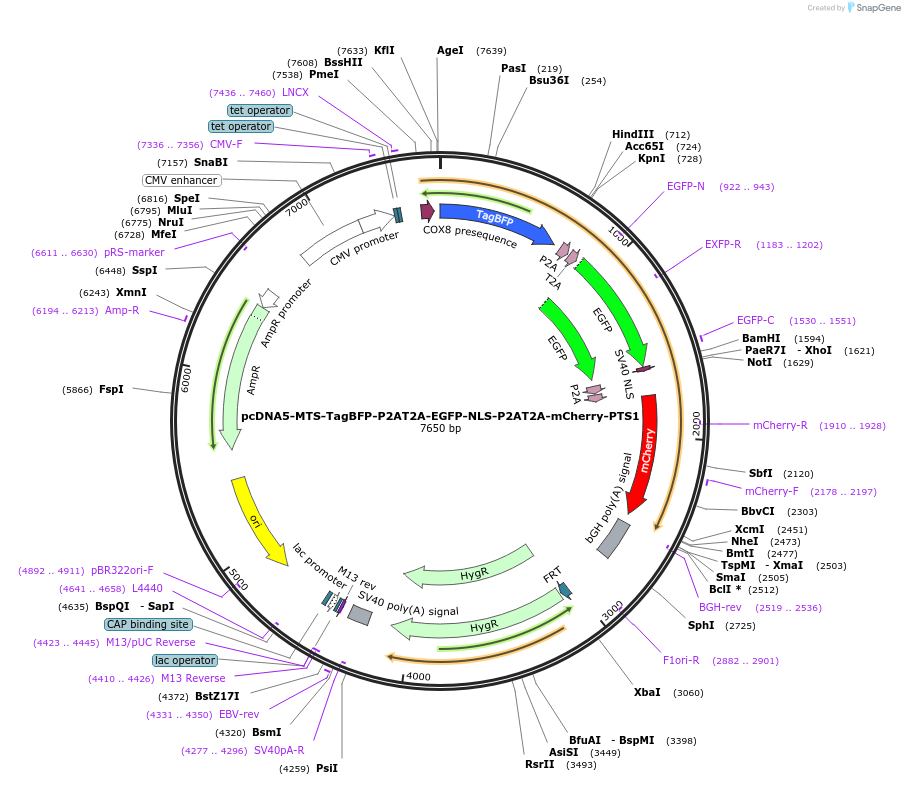

pcDNA5-MTS-TagBFP-P2AT2A-EGFP-NLS-P2AT2A-mCherry-PTS1
(Plasmid #87829)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 87829 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA5/FRT/TO
  • Backbone manufacturer
    Thermo Fisher Scientific
  • Backbone size w/o insert (bp) 5137
  • Total vector size (bp) 7650
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    MTS
  • Alt name
    Cytochrome c oxidase subunit 8A MTS
  • Species
    Synthetic
  • Insert Size (bp)
    87
  • GenBank ID
    none
  • Promoter CMV promoter, tetracycline operator

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site PmeI (not destroyed)
  • 3′ cloning site AgeI (not destroyed)
  • 5′ sequencing primer CGTCGACGAGCTCGTTTAG
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    NLS
  • Alt name
    nuclear localization signal of SV40
  • Species
    Synthetic
  • Insert Size (bp)
    21
  • GenBank ID
    none
  • Promoter CMV promoter, tetracycline operator

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CAACGAGAAGCGCGATC
  • 3′ sequencing primer GTCACCTTCAGCTTGGCG
  • (Common Sequencing Primers)

Gene/Insert 3

  • Gene/Insert name
    PTS1
  • Alt name
    peroxisomal targeting signal 1
  • Species
    Synthetic
  • GenBank ID
    none
  • Promoter CMV promoter, tetracycline operator

Cloning Information for Gene/Insert 3

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site XmaI (not destroyed)
  • 5′ sequencing primer CAAGTTGGACATCACCTCCCAC
  • 3′ sequencing primer CACCTACTCAGACAATGCGATG
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

No stop codon should be placed at the 3' ends of the first insert and the second insert for proper co-expression using 2A-peptide. Tandem 2A-peptide, P2AT2A, enables high-effecient separation of EGFP-tagged protein and mCherry-tagged protein compared to single 2A-peptides, P2A or T2A.

Please cite: Pan D, Klare K, Petrovic A, Take A, Walstein K, Singh P, Rondelet A, Bird AW, Musacchio A (2017) CDK-regulated dimerization of M18BP1 on a Mis18 hexamer is necessary for CENP-A loading. Elife 6. doi: 10.7554/eLife.23352.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA5-MTS-TagBFP-P2AT2A-EGFP-NLS-P2AT2A-mCherry-PTS1 was a gift from Andrea Musacchio (Addgene plasmid # 87829 ; http://n2t.net/addgene:87829 ; RRID:Addgene_87829)
  • For your References section:

    CDK-regulated dimerization of M18BP1 on a Mis18 hexamer is necessary for CENP-A loading. Pan D, Klare K, Petrovic A, Take A, Walstein K, Singh P, Rondelet A, Bird AW, Musacchio A. Elife. 2017 Jan 6;6. pii: e23352. doi: 10.7554/eLife.23352. 10.7554/eLife.23352 PubMed 28059702
