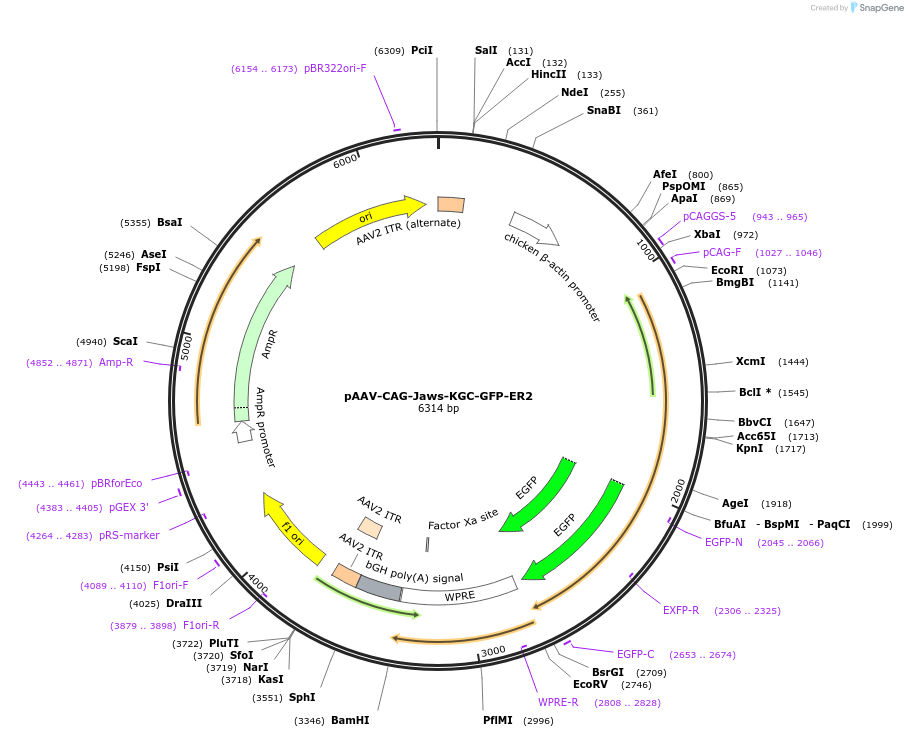

pAAV-CAG-Jaws-KGC-GFP-ER2
(Plasmid #99233)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 99233 Plasmid sent as bacteria in agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    AAV with CAG promter
  • Backbone manufacturer
    Epoch
  • Backbone size w/o insert (bp) 4659
  • Total vector size (bp) 6315
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    Can use Stbl3 at 30°C or DH5alpha at 37°C. Carbenicillin is preferred over ampicillin. In DH5alpha this plasmid may act more like a high copy plasmid, although in Stbl3 it may act more like a low copy plasmid.
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Jaws-KGC-GFP-ER2
  • Alt name
    Jaws
  • Alt name
    Halo57-KGC-GFP-ER2
  • Species
    Haloarcula salinarum (stain Shark)
  • Insert Size (bp)
    1656
  • Mutation
    K200R W214F
  • GenBank ID
    KM000926.1
  • Promoter CAG
  • Tags / Fusion Proteins
    • KGC (C terminal on insert)
    • GFP (C terminal on insert)
    • ER2 (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site EcoRV (not destroyed)
  • 5′ sequencing primer gtgaccggcggctctagagc
  • 3′ sequencing primer cattaaagcagcgtatccac
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

The plasmid is fully sequenced in the coding sequence regions (fluorophore and important flanking regions). Multiple digestions were done to verify the vector structure. The construct and the virus were both tested in vitro.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CAG-Jaws-KGC-GFP-ER2 was a gift from Edward Boyden (Addgene plasmid # 99233)
  • For your References section:

    Noninvasive optical inhibition with a red-shifted microbial rhodopsin. Chuong AS, Miri ML, Busskamp V, Matthews GA, Acker LC, Sorensen AT, Young A, Klapoetke NC, Henninger MA, Kodandaramaiah SB, Ogawa M, Ramanlal SB, Bandler RC, Allen BD, Forest CR, Chow BY, Han X, Lin Y, Tye KM, Roska B, Cardin JA, Boyden ES. Nat Neurosci. 2014 Aug;17(8):1123-9. doi: 10.1038/nn.3752. Epub 2014 Jul 6. 10.1038/nn.3752 PubMed 24997763
